KWIKstarters


  • Pre-assembled or "build-from-stock" starters housed in a high impact, non-metallic, cUL approved, Type 1, 12, 4/4X enclosure
Pre-assembled or "build-from-stock" starters housed in a high impact, non-metallic, cUL approved, Type 1, 12, 4/4X enclosure

Pre-assembled or "build-from-stock" starters housed in a high impact, non-metallic, cUL approved, Type 1, 12, 4/4X enclosure


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
KWIKstarters
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

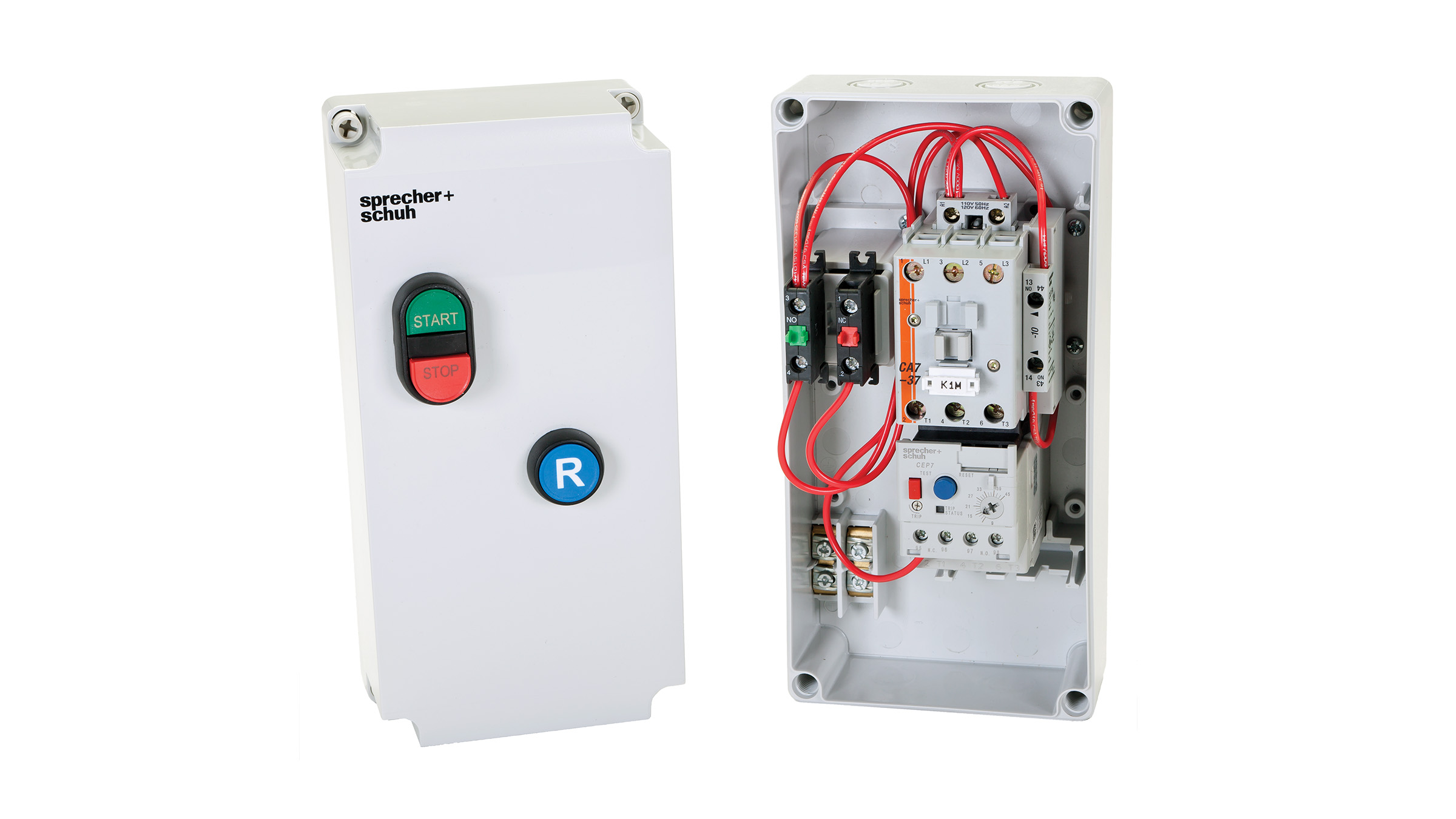

Sprecher + Schuh offers a broad selection of pre-assembled or "build-from-stock" starters housed in a high impact, non-metallic, cUL approved, Type 1, 12, 4/4X enclosure. Built for convenience, space savings and economy, the KWIKstarter line is efficiently designed to use stock CA7/CAU7 contactors and advanced CEP7 solid state or CT7N thermal overloads. Contactor and overload are either prewired and pre-mounted onto the enclosure's built-in DIN-rail or may be ordered as separate components. Ample knockouts and open terminals guarantee quick, no fuss wiring.

KWIKstarters control motors up to 30HP @ 460V (30HP @ 575V) in two enclosure sizes measuring only 208 x 98mm (8.19" x 3.86") or 250 x 125mm (9.84” x 4.92”). This covers over 85% of industrial motor control applications in a very compact package that can be mounted adjacent to or directly on equipment.

KWIKstarters are available in UL sizes 9 to 43 amps, or NEMA labeled sizes 00, 0, 1 and 2. The enclosure and controls are designed for simplicity. A variety of control options and sizes make it a versatile off-the-shelf motor starter for a variety of common applications.

Starters & Enclosed Products

KWIKstarters

Enclosed Contactors

Non-Combination Starters; IEC

Combination Starters; IEC

Explosion-Proof

RVAT, Multi-Speed & Pump

FMS & NEMA Labeled

Product Comparison

1

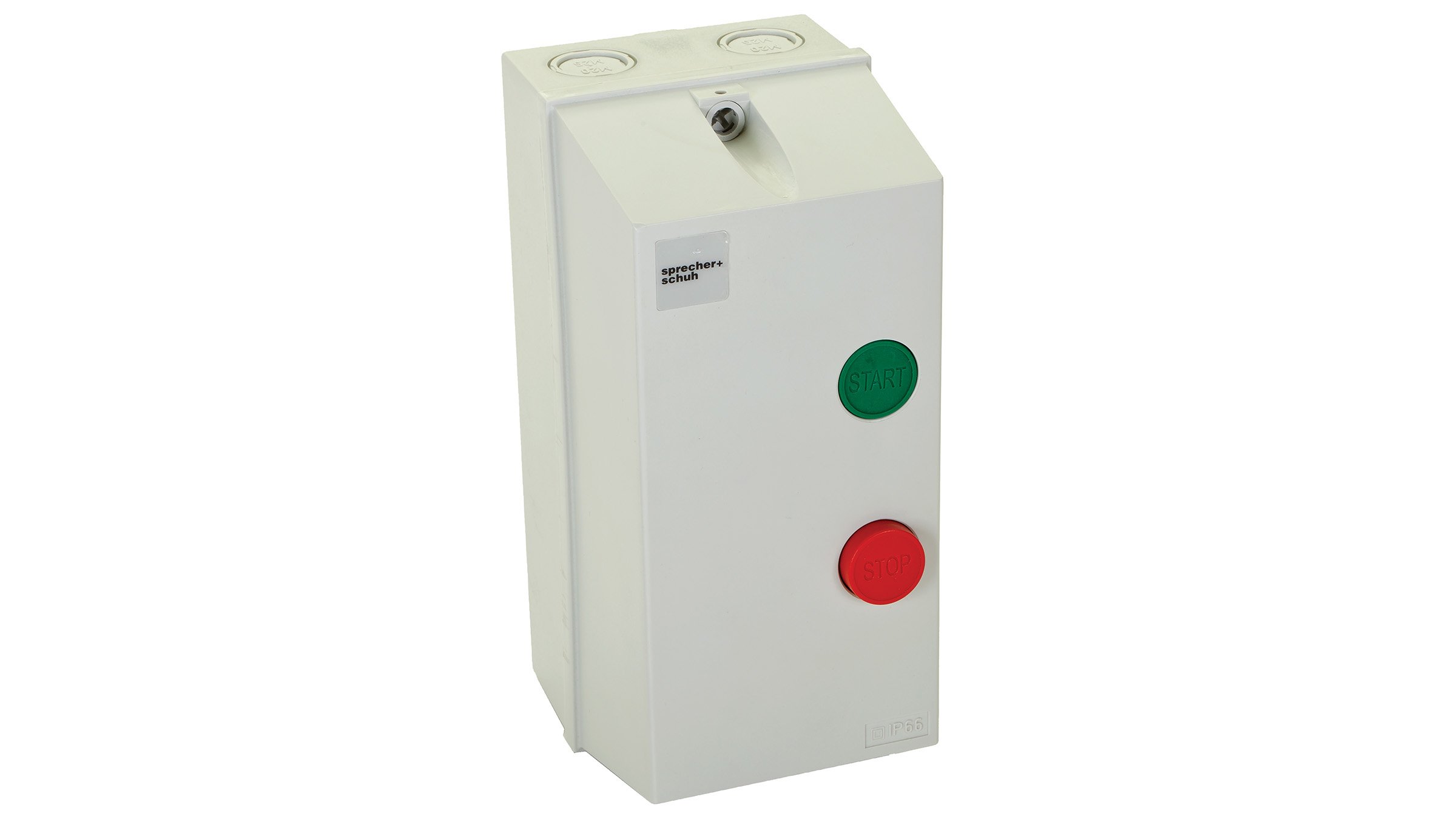

KWIKstarters with stop-start

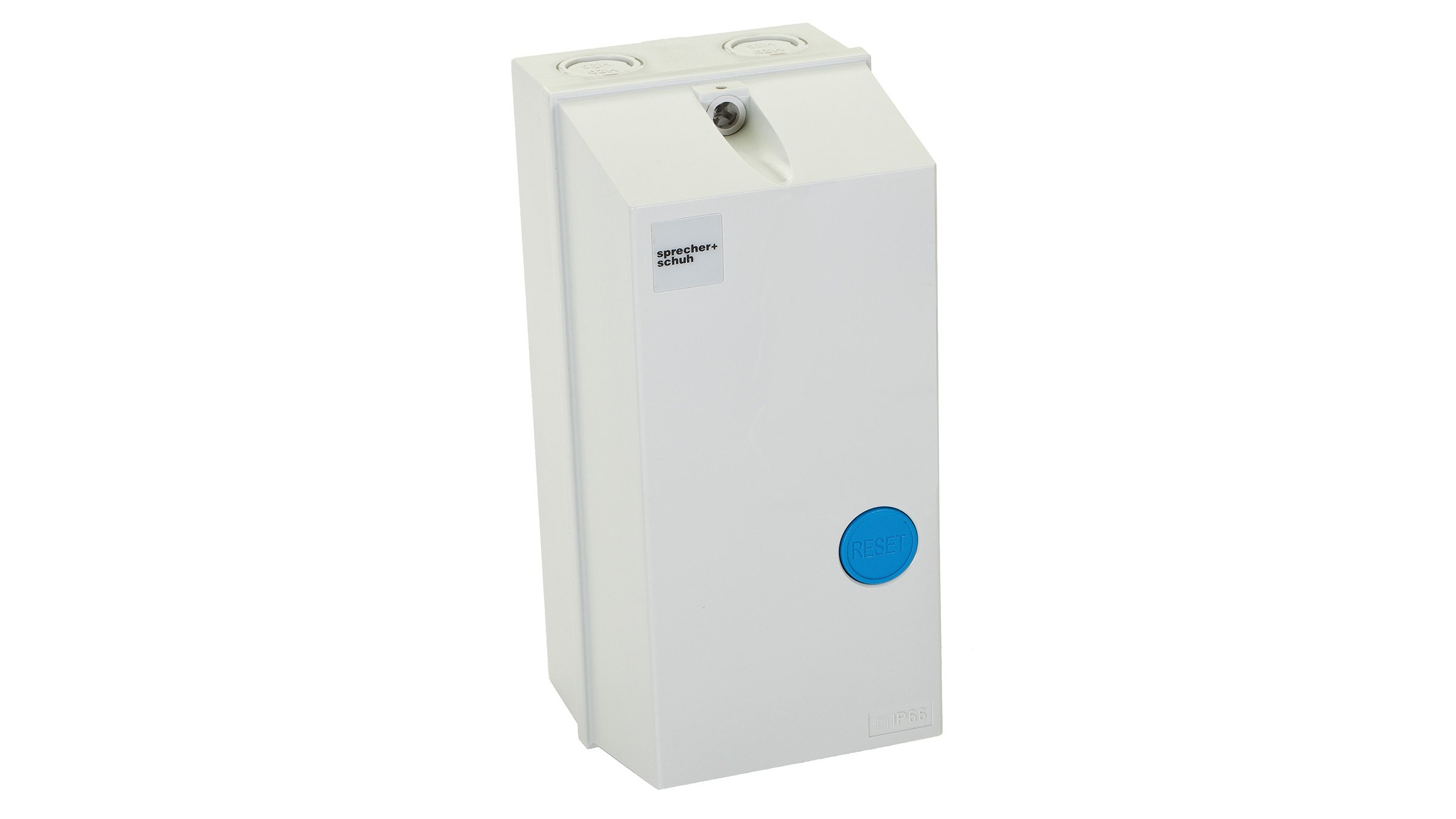

Basic Start-Stop KWIKstarters include a raised Stop and flush Start button for easy control. A blue Reset only model is also available. Either three phase or single phase, this basic model is available in 9...23 amps, in UL ratings up to 15 HP @ 460V AC or Electronic DC, or NEMA sizes 00 or 0.

Multi-function KWIKstarters

Larger horsepower KWIKstarters include three phase and single phase with a variety of multi-function operations (or pilot light) and a Reset. These KWIKstarters are available in 30...43 amps, in UL ratings up to 30 HP @ 460V AC or Electronic DC, or NEMA 1 and 2 sizes.

1
KWIKstarters with Hand-Off-Auto or Forward-Reversing-Stop

HOA Options

HVAC/R KWIKstarters were specifically designed for the HVAC/R industry, in three phase and single phase with a Hand-Off-Auto selector switch, Pilot light, and Reset controls. These HVAC/R KWIKstarters are available in 9...23 amps, in UL ratings up to 15 HP @ 460V AC or Electronic DC, or NEMA 00 and 0 sizes.

Reversing Options

Reversing KWIKstarters in three phase and single phase offer a variety of multi-function operations (or pilot light) and a Reset. These KWIKstarters are available in 9...23 amps, in UL ratings up to 15 HP @ 460V AC or Electronic DC, or NEMA 00 and 0 sizes.

1
Type E/F

CX7 KWIKstarters are a three phase motor controller combining CA7 and KTA7 for a Type E/F Combination Controller. Factory installed controls include On-Off handle and pilot device options, selector switch, multi-function pushbutton or pilot lights. Available in Standard or High Interrupting Capacity, AC or Electronic DC, in models from 1/2 to 15 HP (@ 480V).

Type E/F Reversing

CXU7 KWIKstarters are three phase motor controllers combining CA7 and KTA7 for a Type E/F Reversing Combination Controller. Factory installed On-Off handle and pilot device options, including selector switch, multi-function pushbutton or pilot lights. Available in Standard or High Interrupting Capacity, AC or Electronic DC, in models from 1/2 to 15 HP (@ 480V).

Specifications

  • cUL Approved
  • Type 1/12/4/4X
  • IP66
  • Up to 15 HP @ 600V AC
  • AC and DC
  • Single or 3-Phase

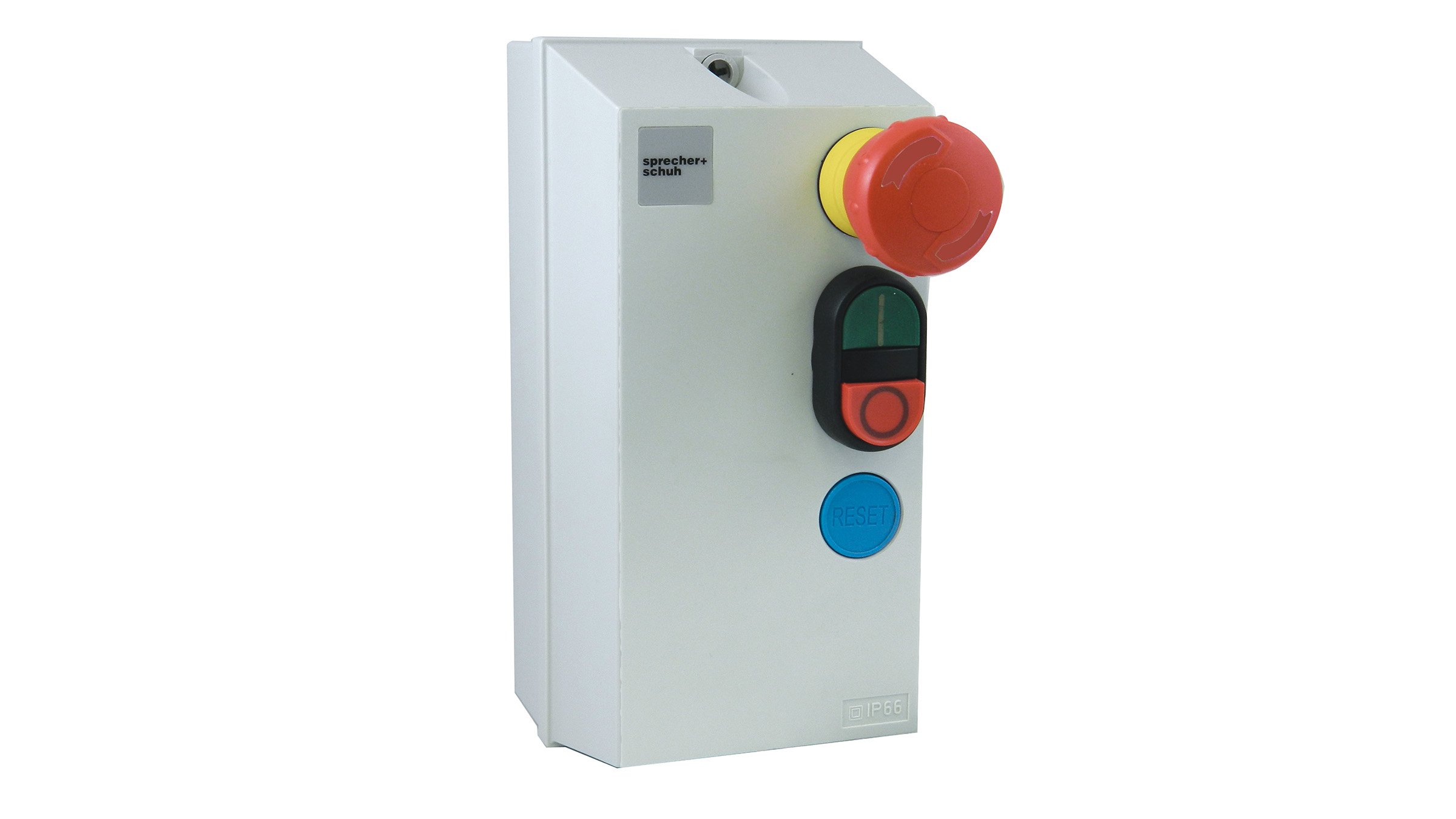

  • Start-Stop, Multi-Function, H-O-A, Reversing, E-Stop
  • IEC or NEMA labeled
  • 125 x 125 x 250 mm (5 x 5 x 10 in) max.

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
KWIKstarters Overview Flyer F-KWIKstarter
Series CNX KWIKstarters for Special Uses Flyer F-CNX
Sprecher + Schuh Panel Shop Services Flyer F-PanelShop
