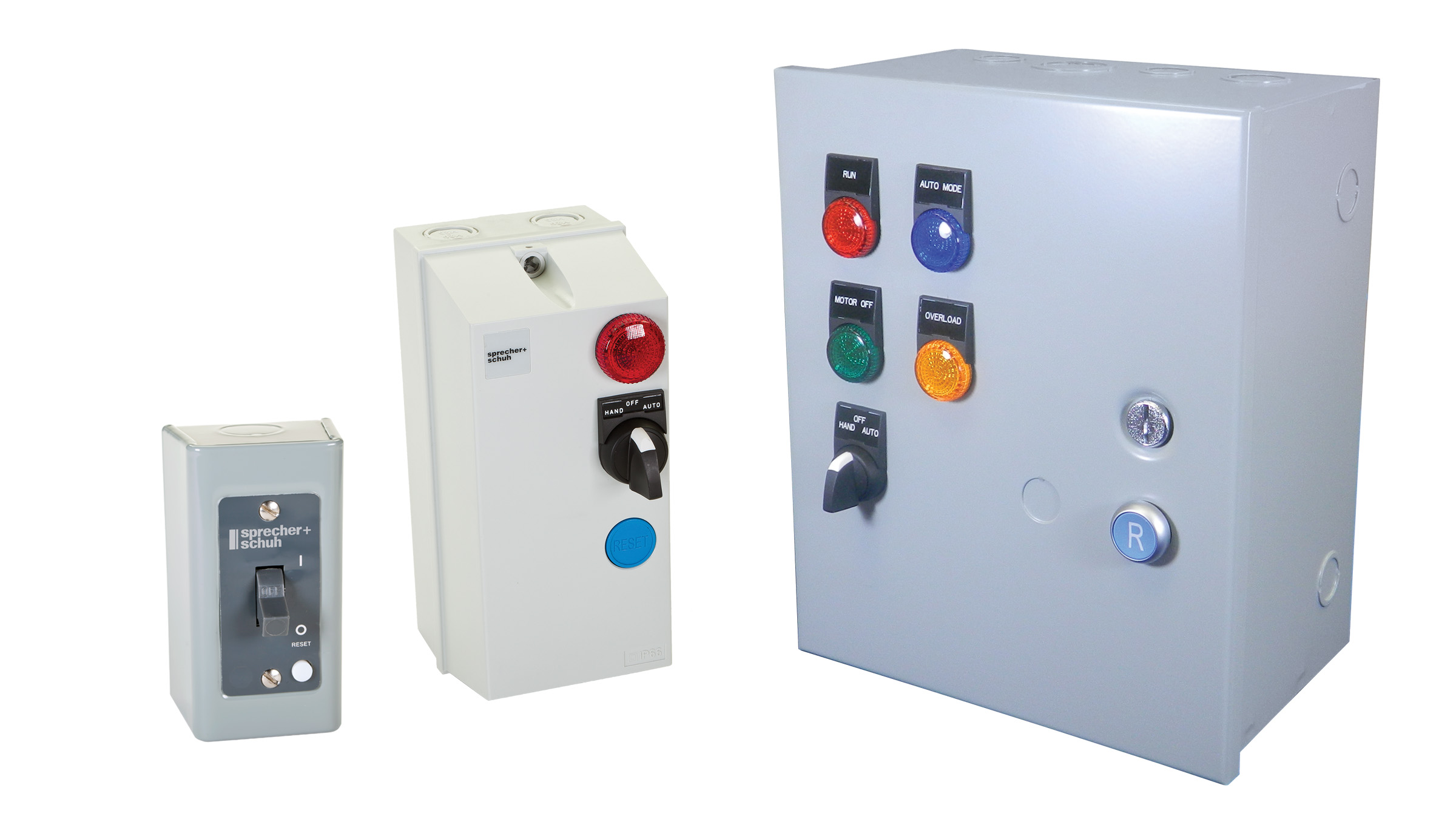

FMS & NEMA Labeled Starters


  • Fractional Manual, Non-Combination & Combination starters labeled for NEMA applications
Fractional Manual, Non-Combination & Combination starters labeled for NEMA applications

Fractional Manual, Non-Combination & Combination starters labeled for NEMA applications


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
FMS & NEMA Starters
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Sprecher + Schuh offers a complete line of combination and non-combination starters suitable for almost any HVAC/R application in the industry. Standard HVAC/R starters range from NEMA Size 00 up to NEMA size 3 (50HP @460V AC).

Sprecher + Schuh Fractional Manual Starters (FMS) consist of a snap switch combined with a thermal overload device operating on the solder-ratchet principle. To reset the overload mechanism, the switch lever is moved to the OFF position. The motor can be restarted by simply pushing the switch lever to the ON position. The switch is designed to prevent being held closed under a sustained motor overload.

Sprecher + Schuh NEMA labeled KWIKstarters are housed in a high impact, nonmetallic, cUL Approved, Type 1, 12, 4,

4X enclosure. Built for convenience, space savings and economy, KWIKstarters are efficiently designed to use stock CAN7 contactors and CEP7 or CT7N overloads. Contactor and overload are either pre-wired and pre-mounted onto the enclosure’s built-in DIN-rail or may be ordered as separate components. Ample knockouts and open terminals guarantee quick, no fuss wiring.

Standard starters include Non-combination, Fusible, Non-Fusible and Molded Case Circuit Breaker disconnects. All sizes are available in metallic Type 1 General Purpose or Type 3R Outdoor Rain tight enclosures. Three-phase and Single-Phase styles are available. An additional factory assembled option is the fireman damper interface, especially designed for meeting the needs of building and contractor specifications for shut down control.

Starters & Enclosed Products

KWIKstarters

Enclosed Contactors

Non-Combination Starters; IEC

Combination Starters; IEC

Explosion-Proof

RVAT, Multi-Speed & Pump

FMS & NEMA Labeled


Product Comparison

Fractional manual starter up to 1 HP
Fractional Manual Starters
  • Easy, simple starting to 1 HP
CAKN7 KWIKstarters with HOA selector switch
CAKN7 KWIKstarters
  • A quick solution, built from stock and easily assembled for applications up to 25 HP
CATN7 NEMA labeled starters
CATN7 Combination & Non-Combination
  • Robust, quality core components and accessories
  • Multiple disconnect options in a wide range of sizes
  • Wide range of choices to fit a variety of building automation needs

Specifications

  • Features and Spec bullets

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
How-To Choose FMS Heater Elements White Paper Tech-FMS-HeaterSelection
FMS Fractional Manual Starters Overview Flyer F-FMSSTARTER
HVAC/R Program for Authorized Distributors Flyer F-HVAC
NEMA HVAC Starters Fireman Damper Interface Flyer F-HVAC-FDSTARTER
