Take traditional motor control to the next level

The CET7 Electronic Motor Starter fits into our Branch Motor Control & Protection portfolio, which also features our  traditional motor control products including the CA7 Contactor, CEP7 Motor Overload Relay and KT9 Motor Protection Circuit Breaker. Together with the CET7, these components create one of the most advanced motor control solutions on the market.

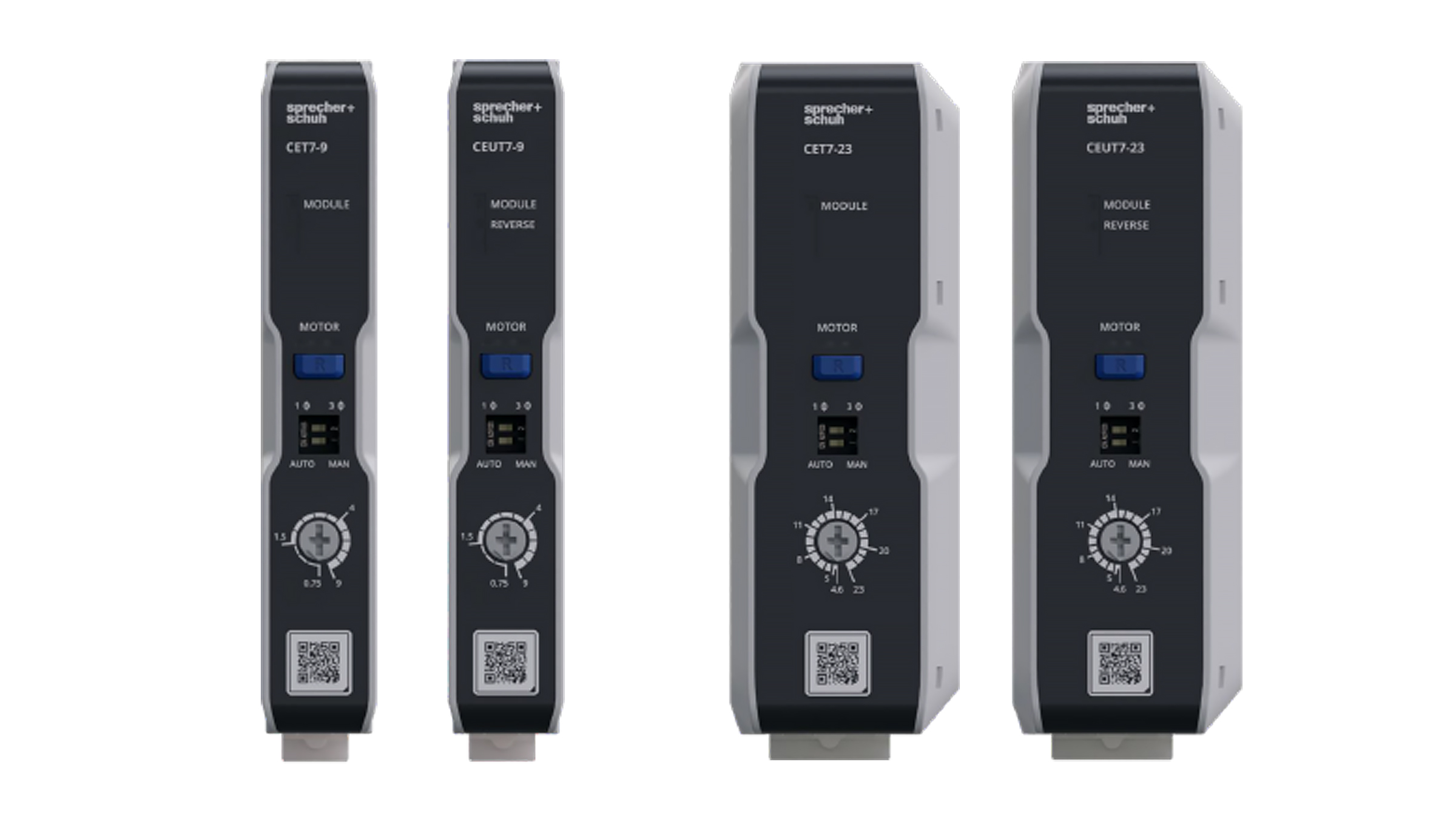

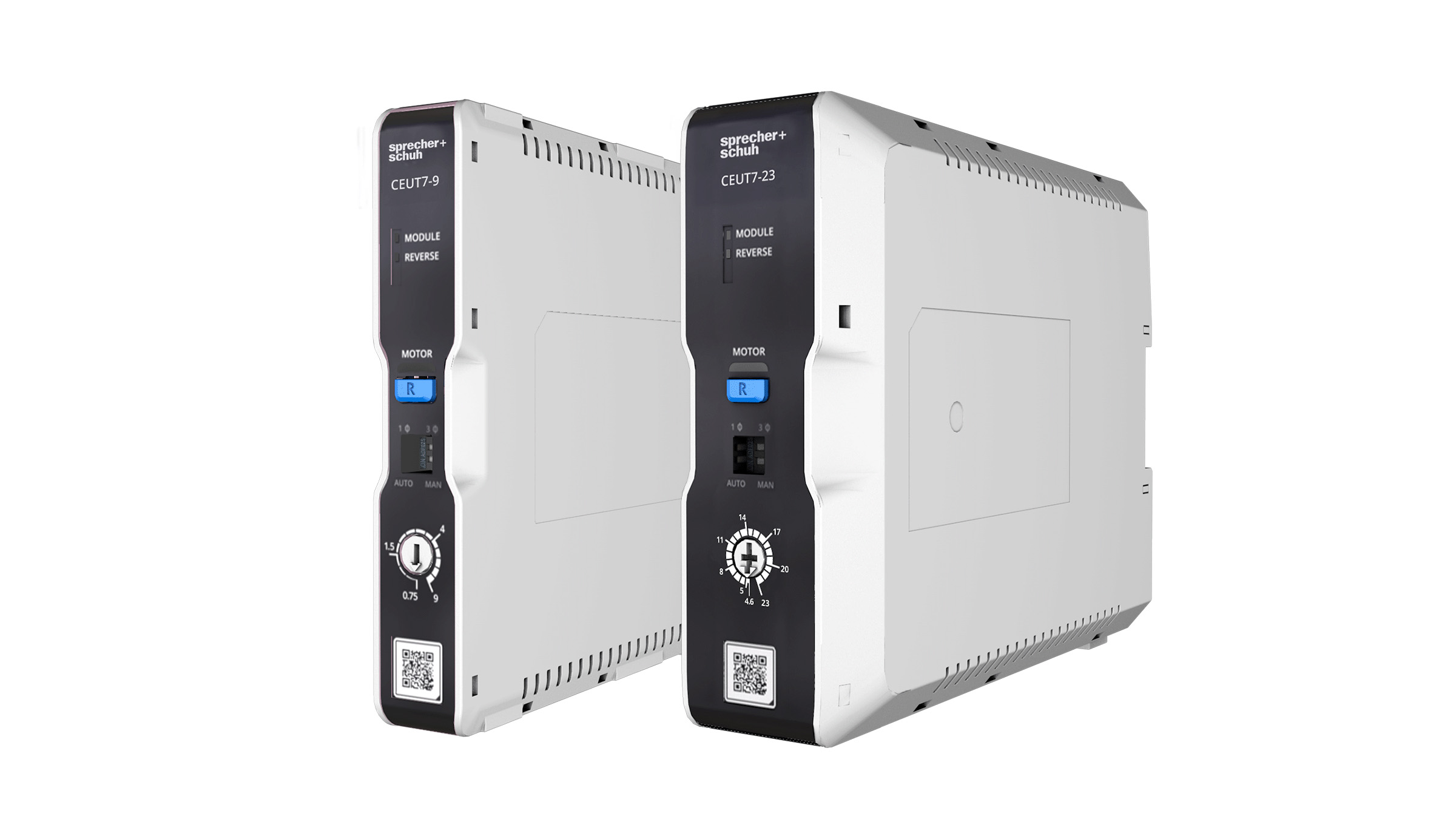

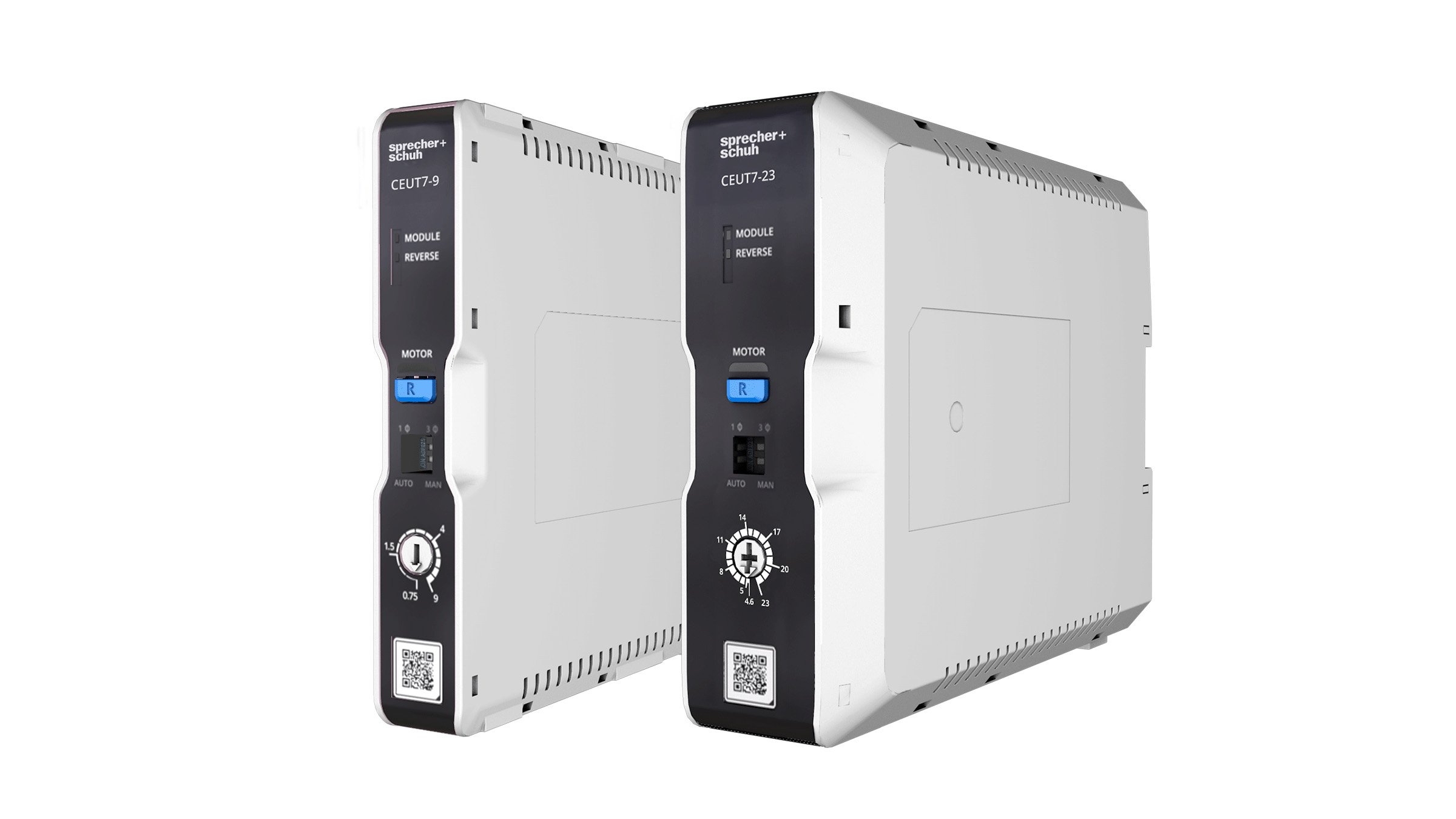

CET7 / CEUT7 Features

• Point-on-Wave (POW) technology
• Direct-on-line (DOL) and reversing operations in the same form factor
• Zero-stacking with no derating up to 131°F (55°C)
• Wide amperage range
• Integrated electronic overload
• Built-in phase loss, imbalance and weld detection
• Removable terminal blocks
• Single or three-phase operation up to 480V AC

Specifications

• Rated operating current

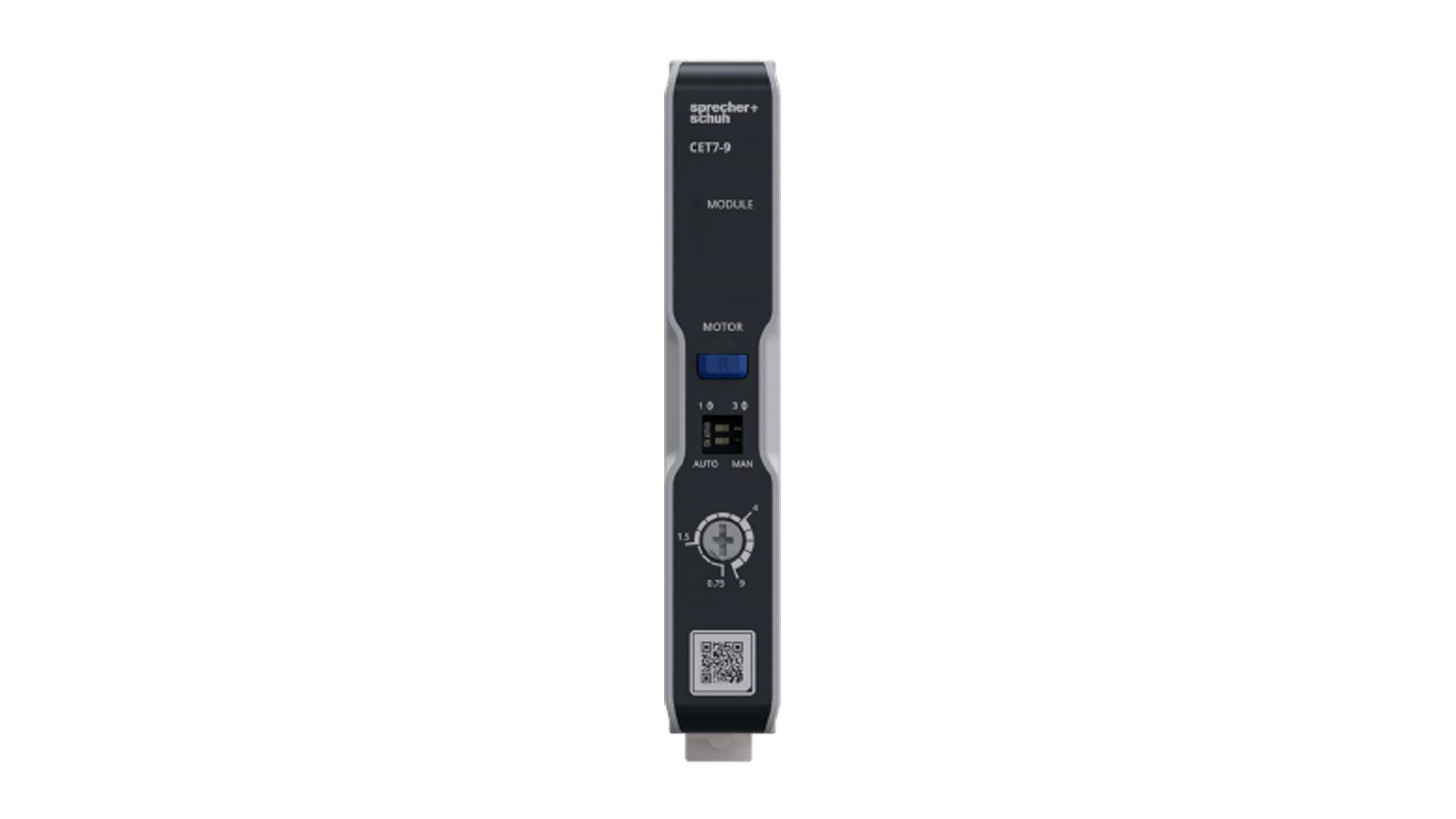

  • 9 A configuration 0.75…9 A

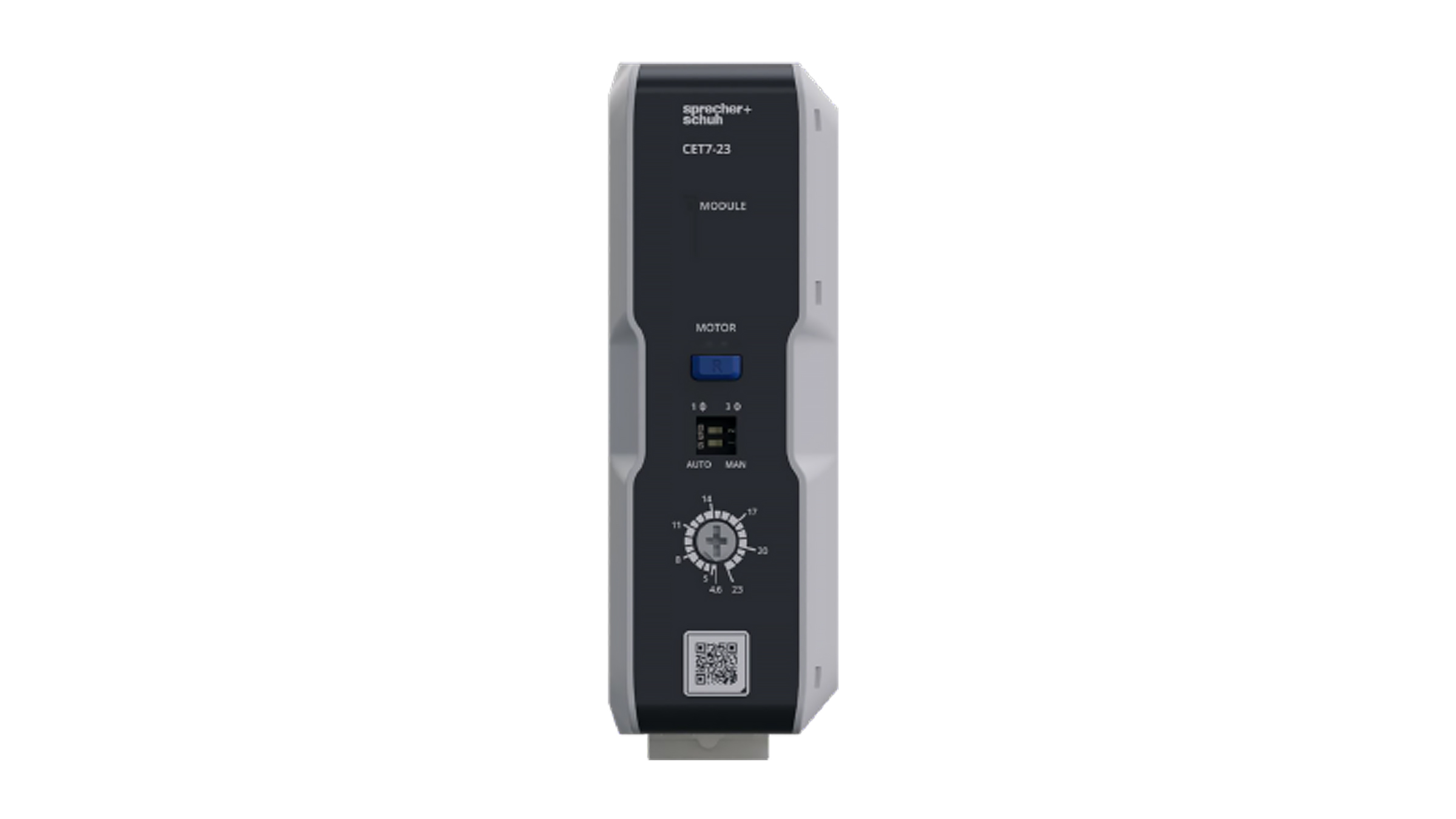

  • 23 A configuration 4.6…23 A
• Control voltage power source requirements
  • 24V DC (-15% / +10%) control power source on the A1+/A2-terminals
• Rated operating voltage Ue 480V AC
• Maximum operating voltage 480V AC
• Rated insulation voltage Ui 500V
• Rated impulse withstand voltage Uimp 6 kV
• Rated frequency 50/60 Hz
• Trip class 10
• Utilization category AC-3
• 1 million operation (AC-3)

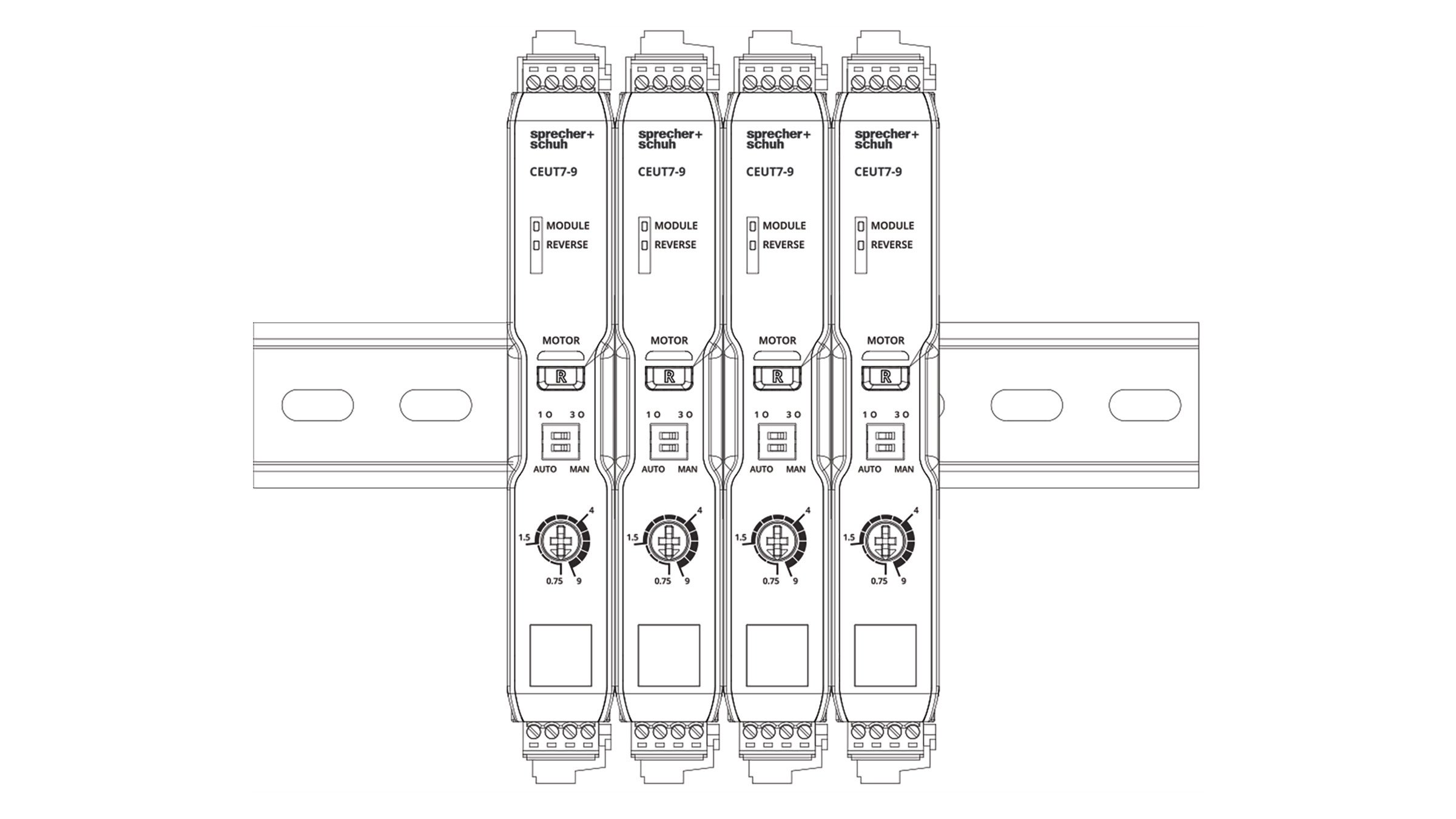

CET Electronic Motor Starters can be stacked in the vertical position for multi-motor control centers in a compact area.

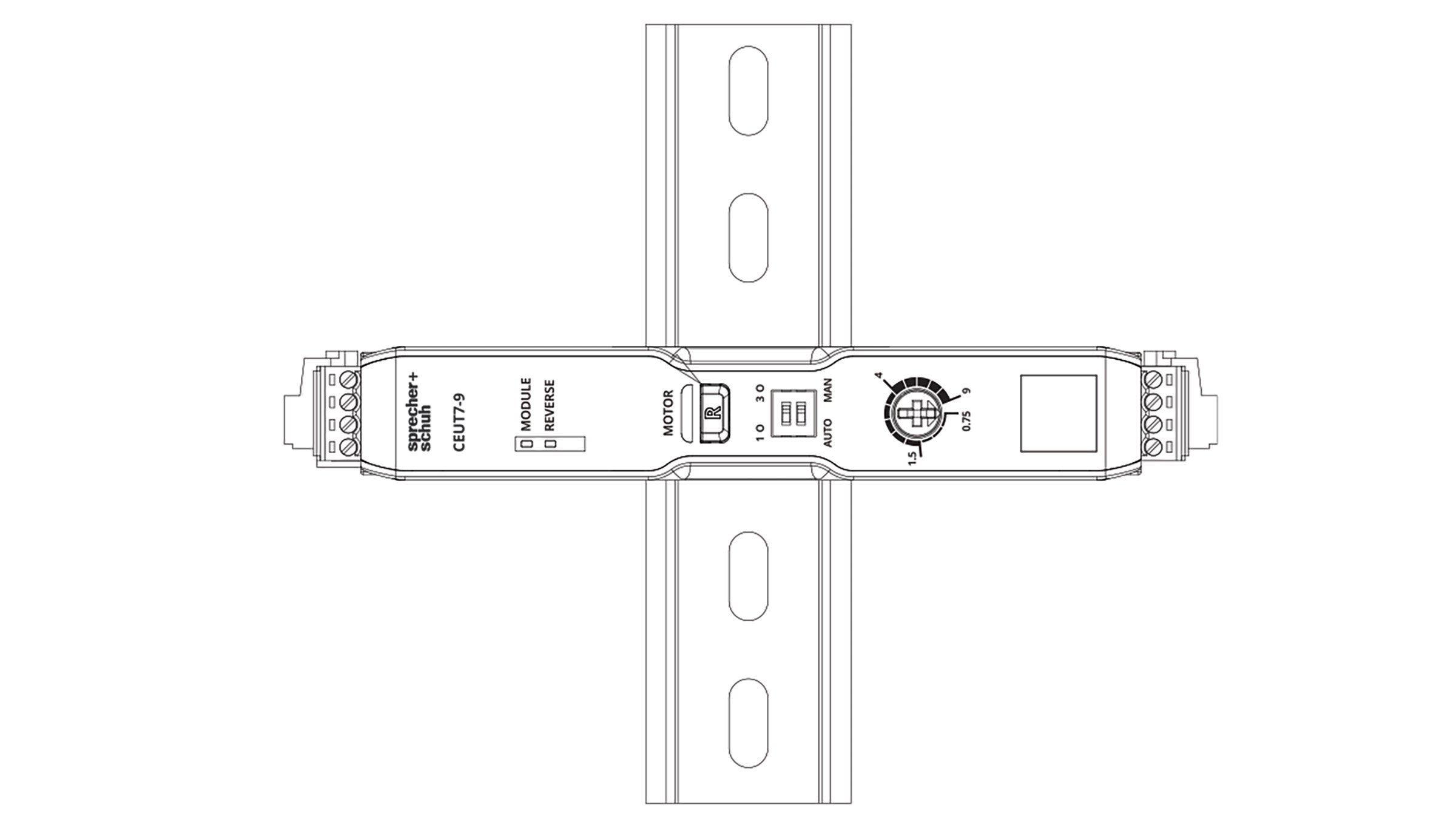

Horizontal mounting is also possible.
