ECO Modul

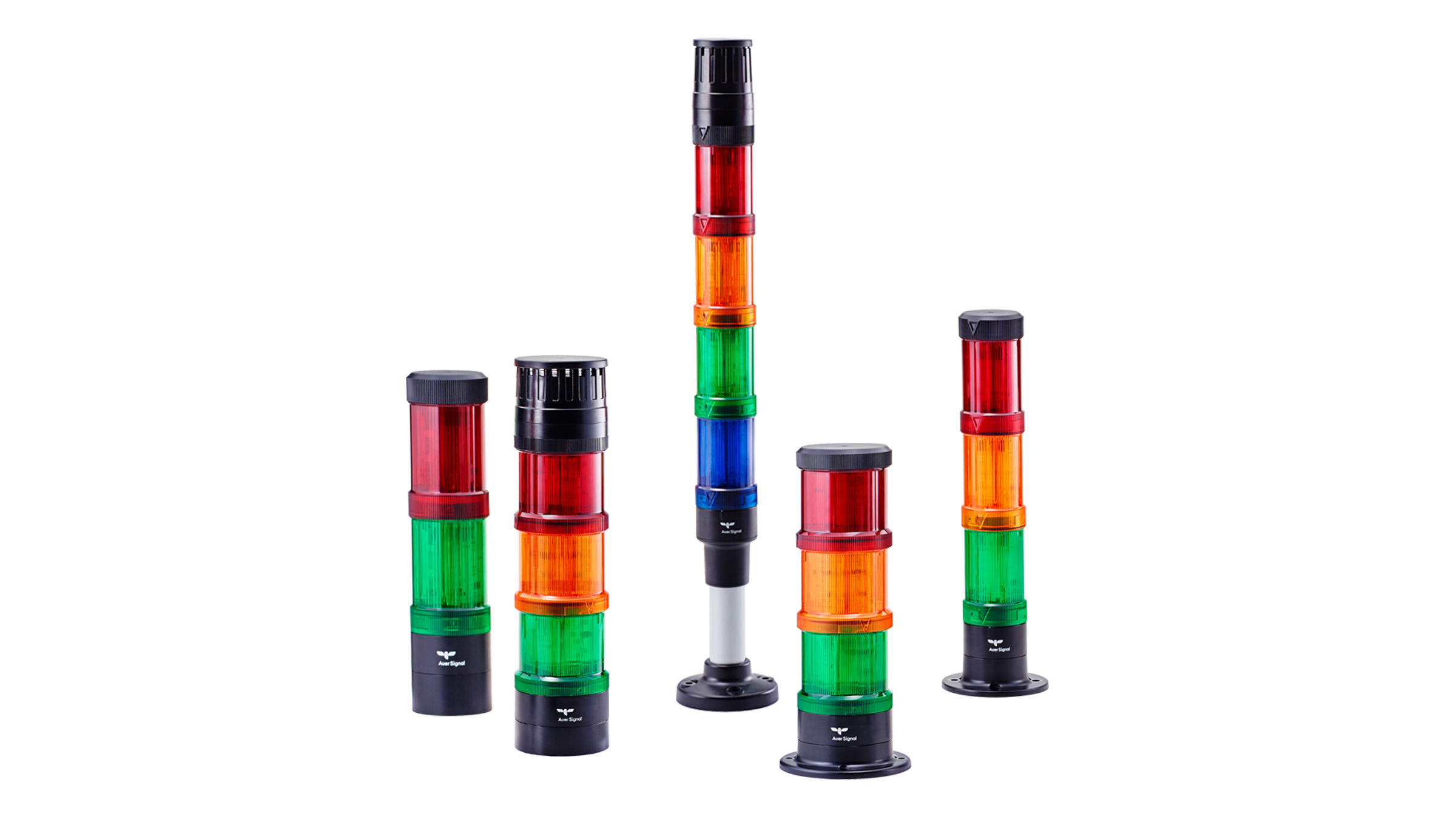

  • The economical choice for flexible and easy to assemble signaling tower devices, in 40, 60 and 70 mm diameters
The economical choice for flexible and easy to assemble signaling tower devices, in 40, 60 and 70 mm diameters

The economical choice for flexible and easy to assemble signaling tower devices, in 40, 60 and 70 mm diameters


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
ECO Modul
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

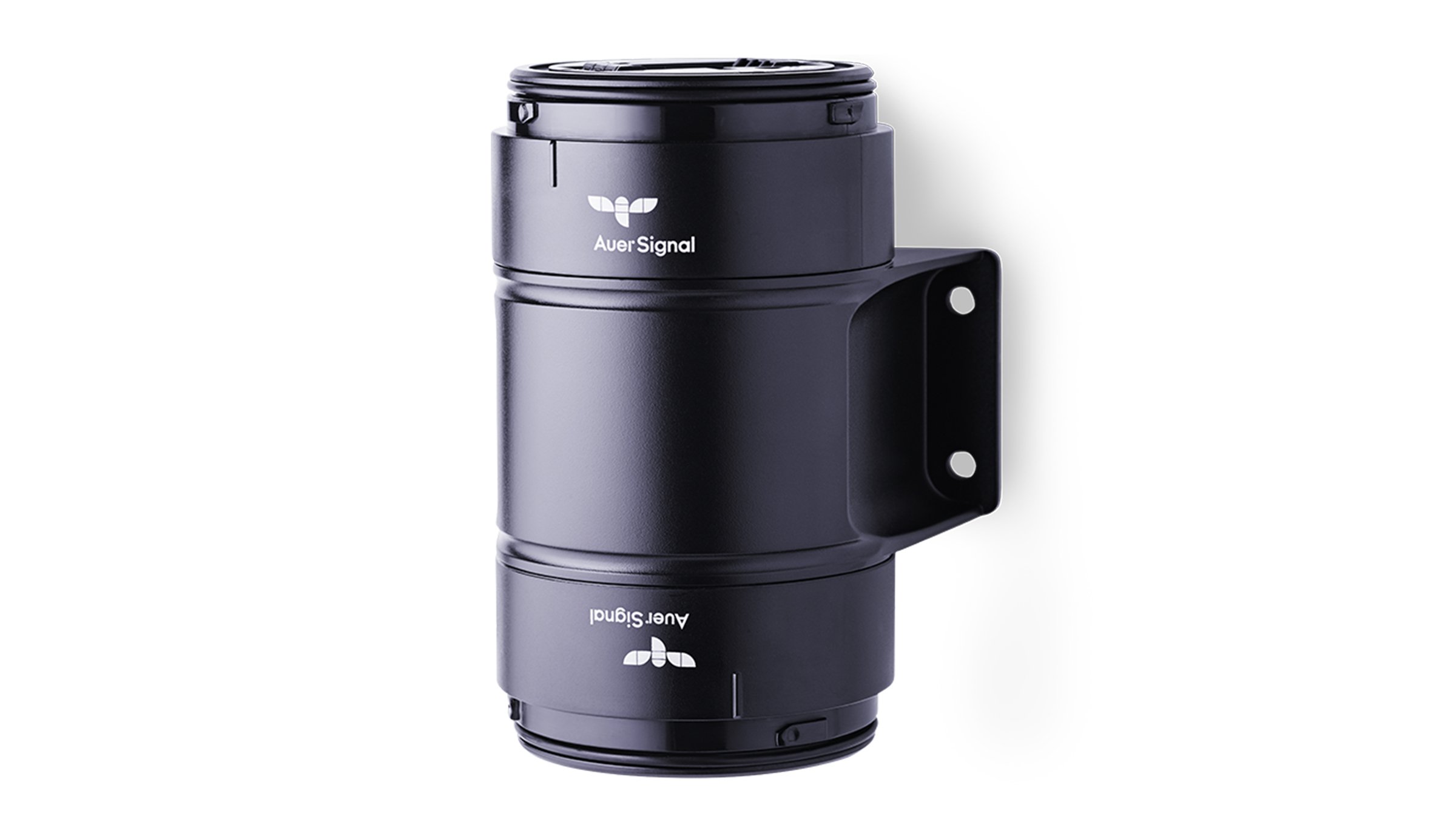

This modular line of 40, 60 and 70mm diameter signaling towers are flexible, economical, and easy to assemble and install. Include up to 5 modules per tower, or four with a sound option. The optional Double Sided mount allows up to ten modules for even greater flexibility. Order as components or assembled to your specifications from our panel shop.

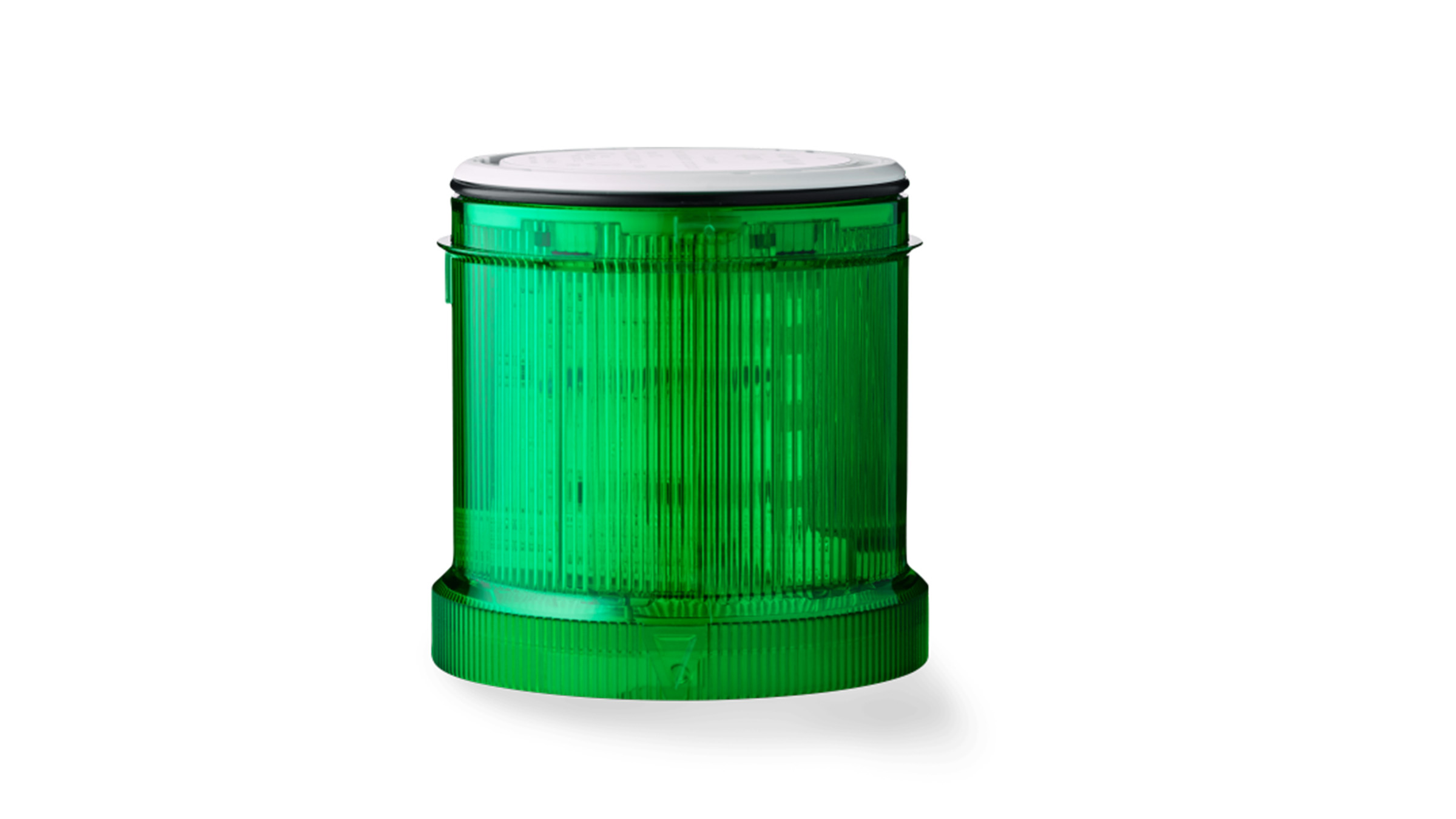

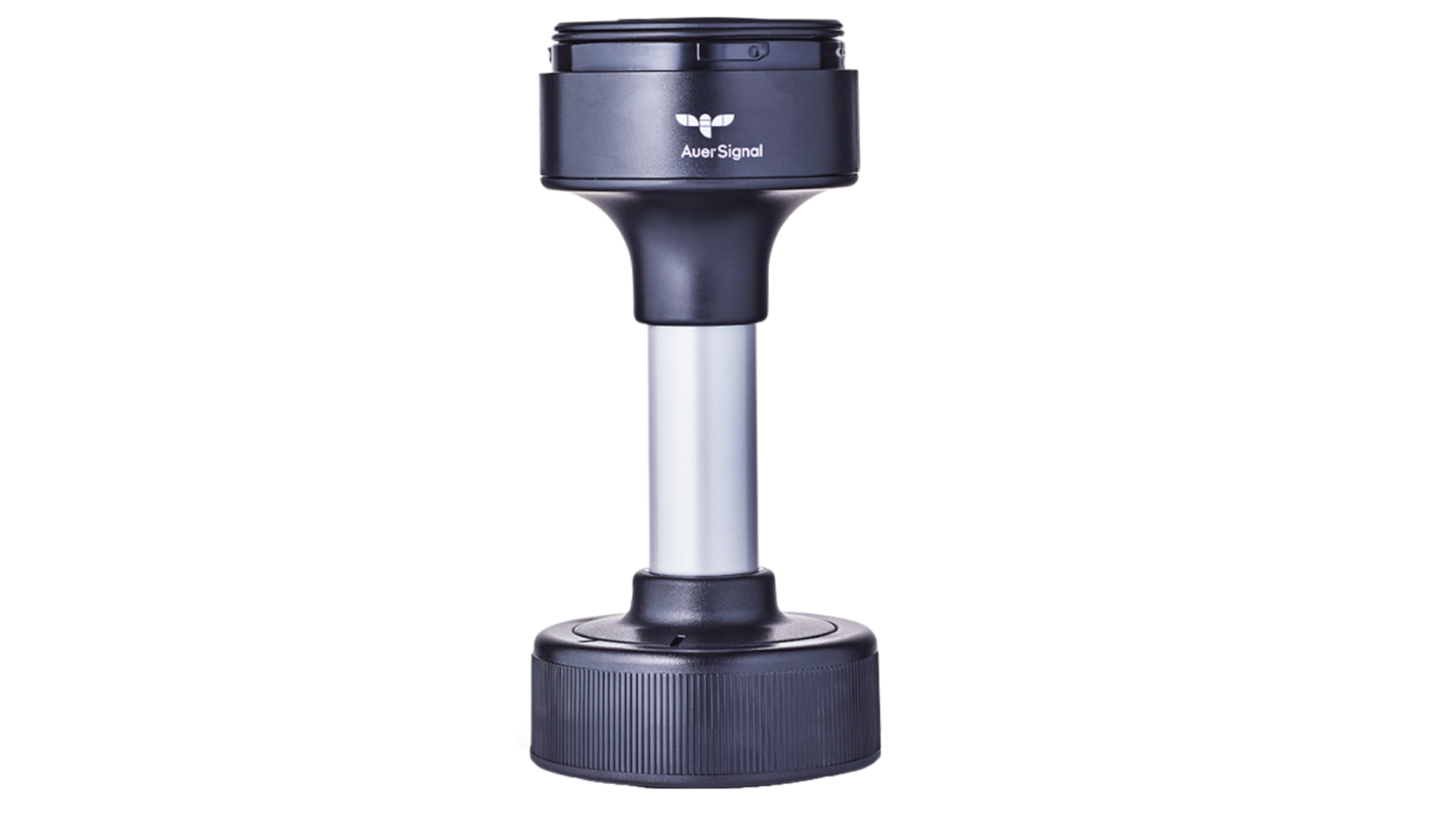

Industrial polycarbonate is used to construct all light modules and bases. Features include incandescent, LED or strobe illumination, piezo sound tones, and aluminum pole bases and extension poles, including the Quick Release adapter. All poles are offered in several lengths, and may be cut to a specific length if required. A variety of standard bases include surface mount, pole mount, and side mounting for vertical equipment surfaces and walls.

All ECOmodul tower lights meet UL Type 4 / 4X / 13 and IP66 guidelines for use indoors or out. Some models include the HD option, a High Performance LED module for exceptional visibility designed for outdoor, daylight or hazardous signaling applications. No other manufacturer offers this extensive range of options and environmental approvals.

Up to five modules of the same voltage may be combined in any order with a simple twist of the wrist. Each light module has a bayonet locking system and finger protection that allows it to be “hot swapped” if necessary. With reassembly of the Warning Tower, all modules are under power again, automatically. To prevent unauthorized opening, optional set screws may be used to lock each module in place.

Auer Signaling

Beacons & Alarms

M22 Beacons & Alarms

Perfect 70

Modul 50

ECO Modul

Compact30 & HD90

Tower Lights Configurator

Product Comparison

ECO Modul 40
  • Steady Incandescent
  • Steady/Flashing/Strobe LED
  • Pole, Quick Release, Surface, Tube, Vertical, Double-sided, or 1/2” NPT base Mounting
  • Piezo single tone
  • Black housing
  • Standard connectivity
  • 24V DC, 120V AC, 240V AC
Modul Signal 50
  • Up to five modules
  • Steady/Flashing, Incandescent or LED
  • Pole, Quick Release, Surface, Tube or Vertical Mounting
  • Piezo single or dual tone
  • Black or Gray housing
  • Standard connectivity
  • 12 VDC, 24V DC, 120V AC, 240V AC
Perfect 70
  • Up to 7 modules
  • Steady/Flashing/Rotating/Strobe and Multi-function LED
  • Pole, Quick Release, Surface, Tube or Vertical Mounting
  • Multi-tone sounder for top or in-line
  • MP3 Recordable sounder
  • Black housing
  • Standard connectivity
  • 24V AC/DC, 120-240V AC

Specifications

  • Modules include universal black polycarbonate housing and cap
  • Five types of illumination
  • 12V AC/DC up to 240V AC

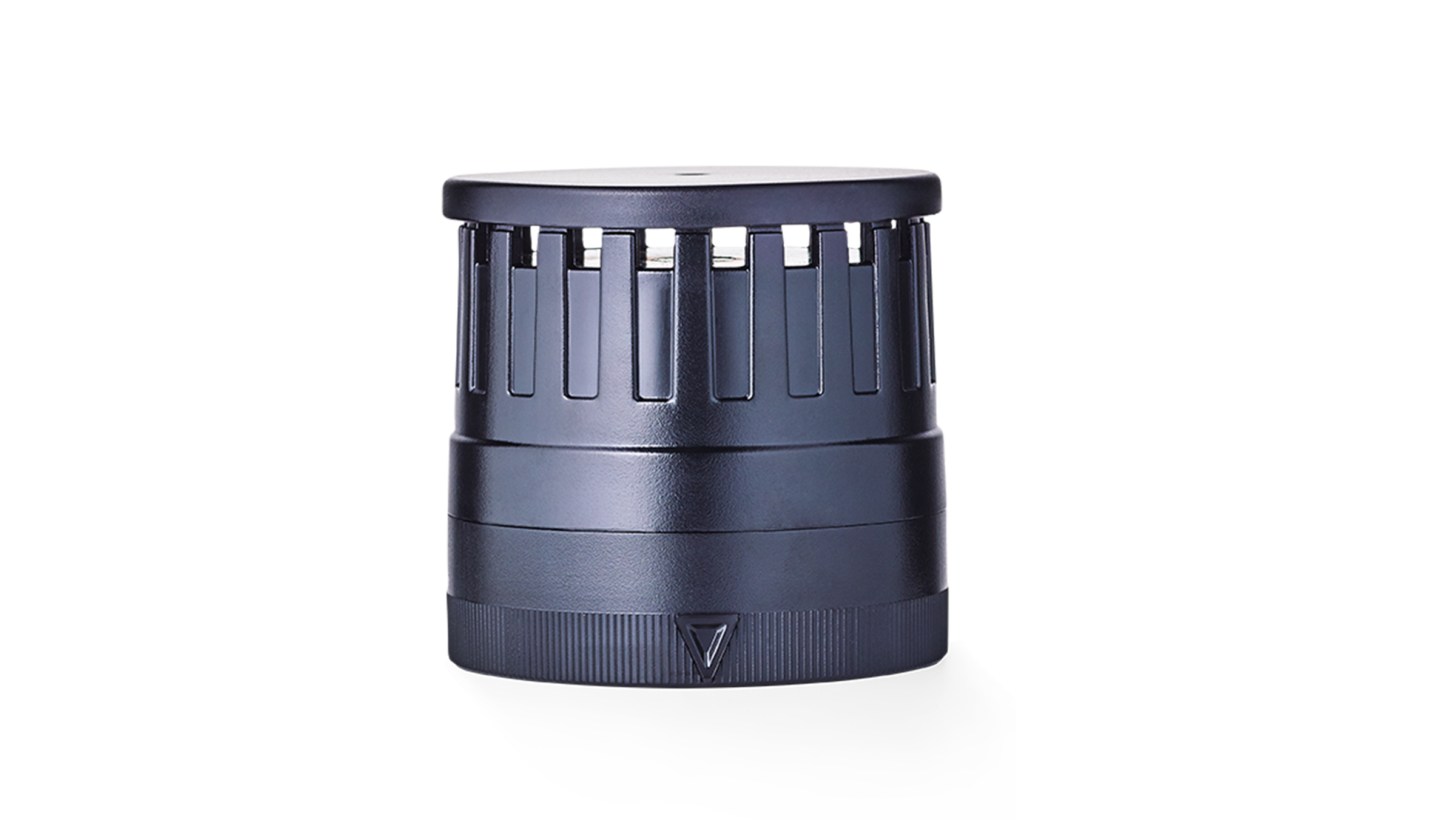

  • Piezo buzzer and multi-tone sound modules with easy connection terminals
  • Six lens colors to choose
  • Nine different mounting options available including magnetic base
  • cULus Type 4 / 4X / 13 and CE, IP66
  • PLC (leakage, inrush current)

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
ECOmodul 40, 60 & 70mm Signal Towers Overview Flyer F-ECOMODULTOWER
Auer Quick Selection Counter Mat Guide Mat-Auer
Auer Selecting Illumination Types White Paper TECH-ILLUMINATION
Auer Selecting Signaling Devices White Paper TECH-Signaling
