D7 Devices

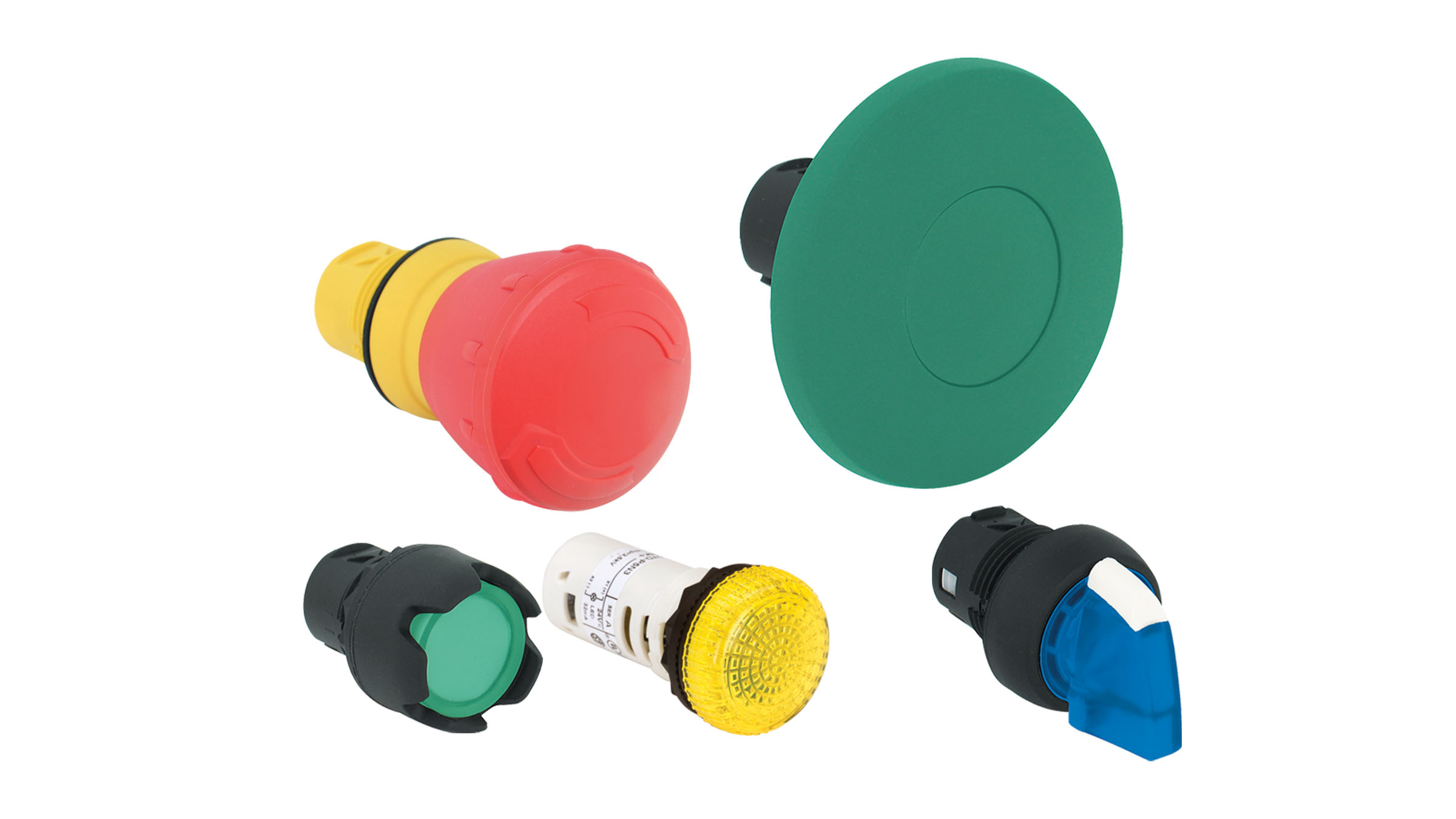

  • The Economical Solution For High Performance Control, Signaling And Switching Applications

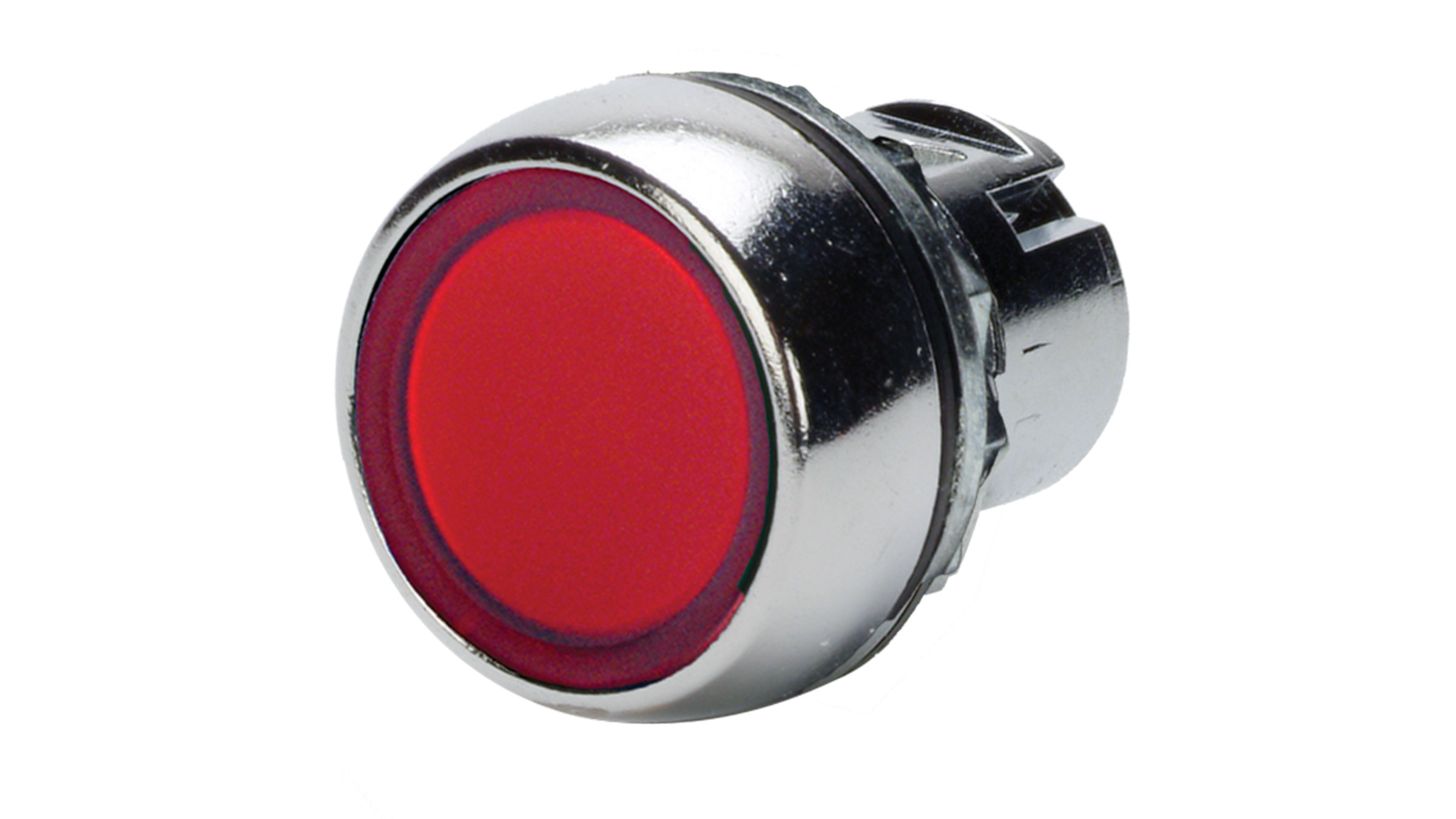

  • d7m-lf4-metal-pushbutton-operator

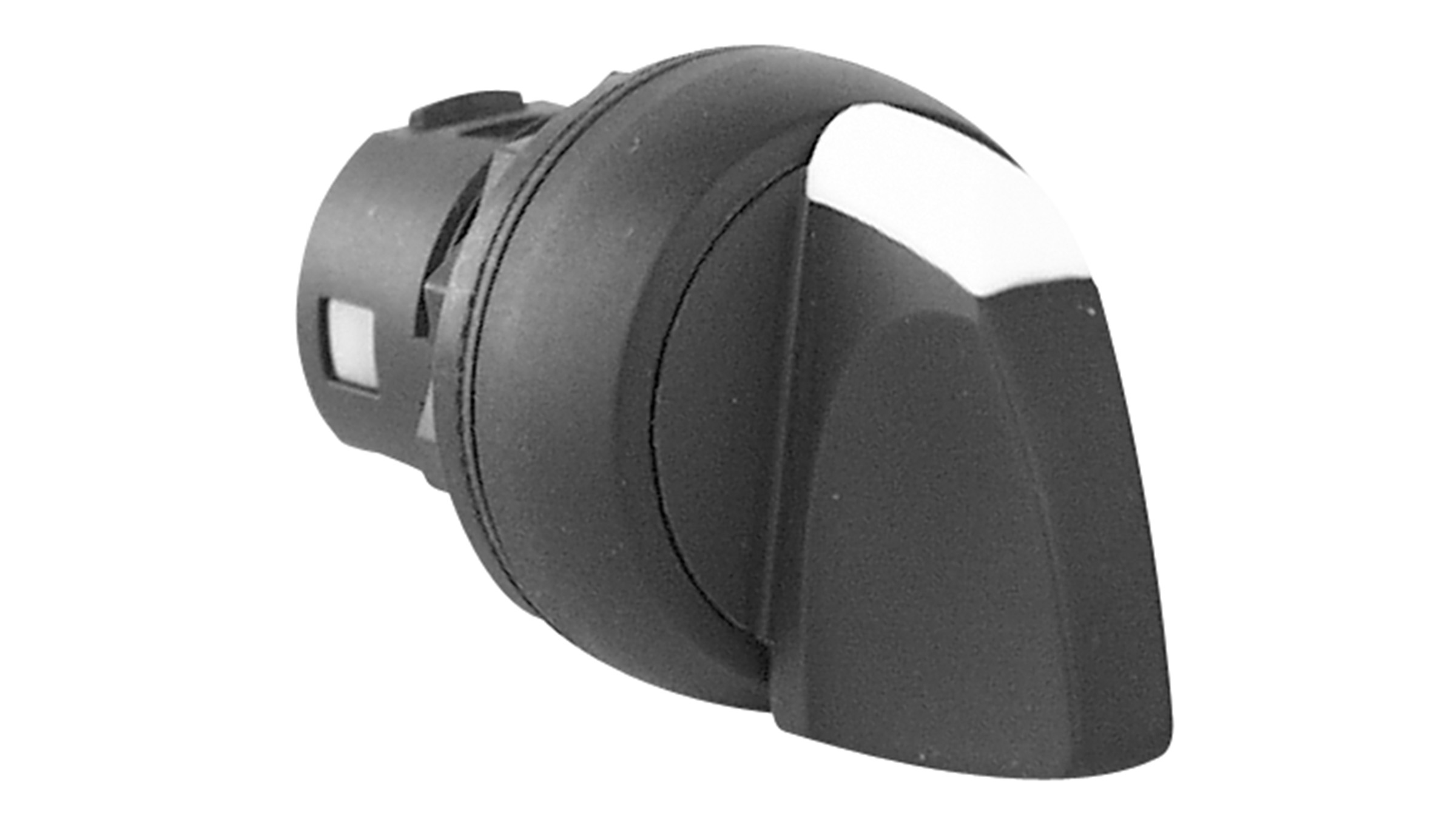

  • D7P-SM32 Selector Switch

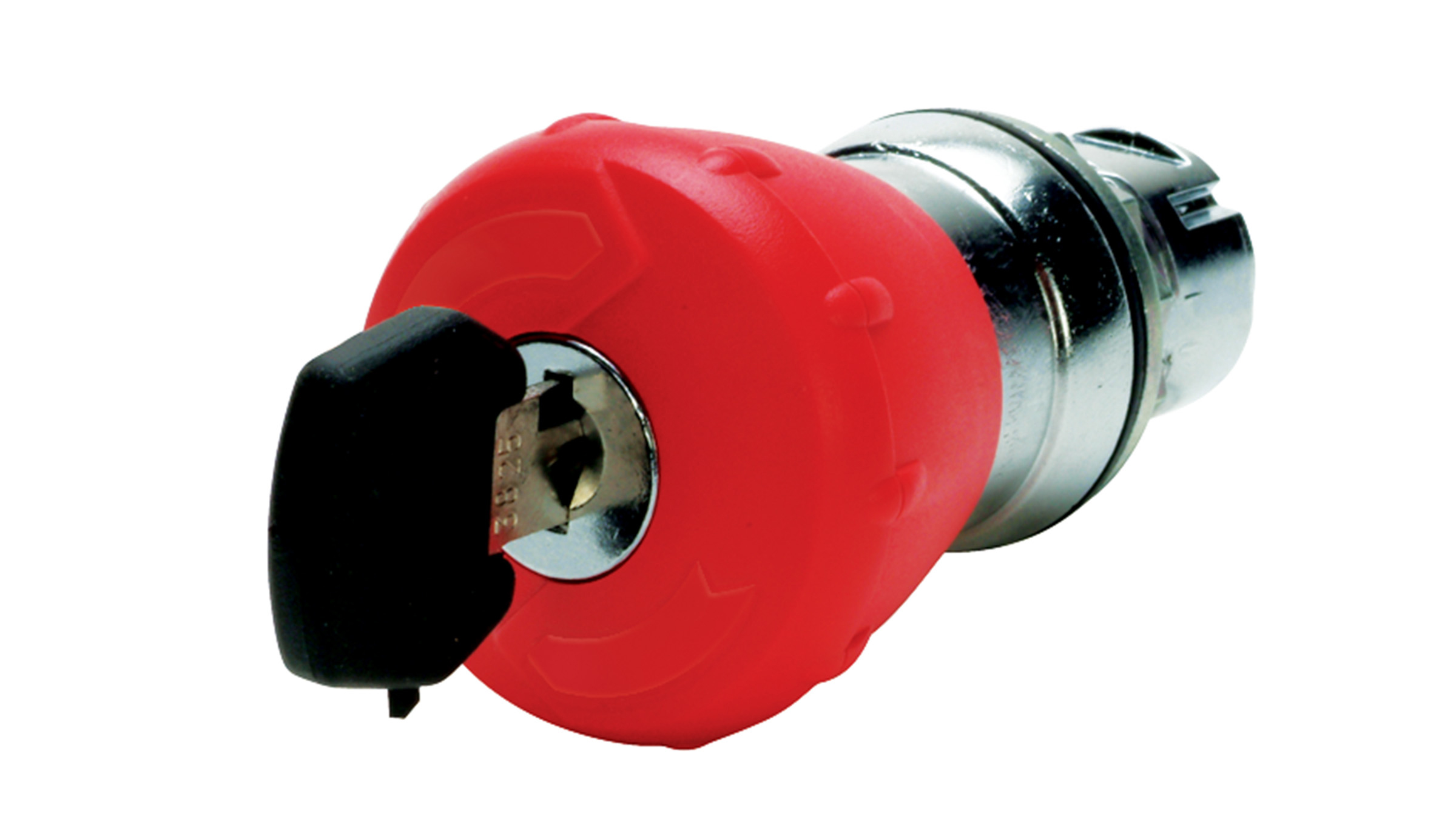

  • D7M-MK44 Emergency Stop Operator

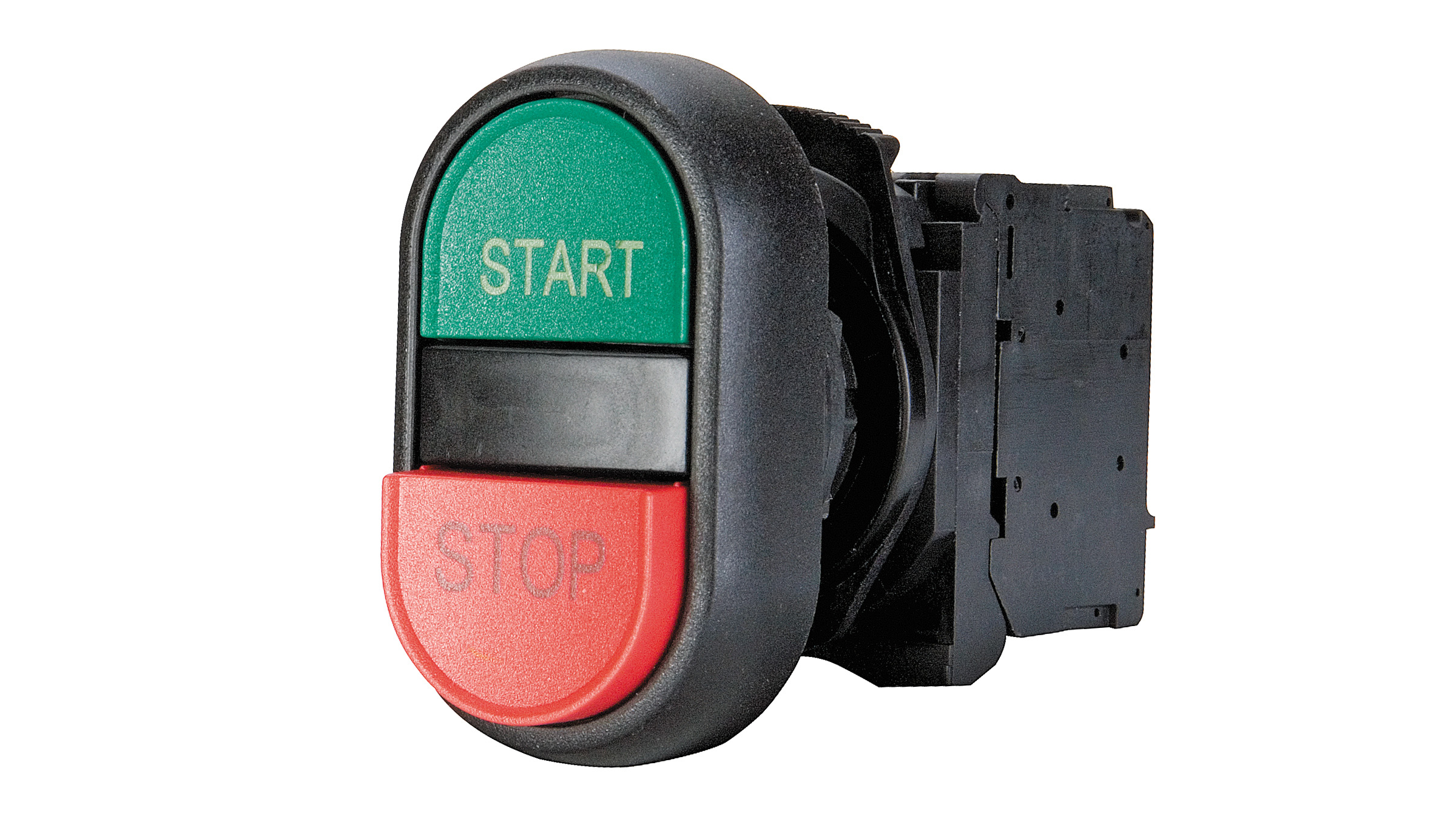

  • D7P-U2EBFA Multifunction Start Stop Operator
The Economical Solution For High Performance Control, Signaling And Switching Applications
d7m-lf4-metal-pushbutton-operator
D7P-SM32 Selector Switch
D7M-MK44 Emergency Stop Operator
D7P-U2EBFA Multifunction Start Stop Operator

The Economical Solution For High Performance Control, Signaling And Switching Applications


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
D7
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Sprecher + Schuh's rugged D7 pilot devices offer maximum flexibility and a wide choice for all applications. This 22mm line is aesthetically appealing and modularly designed to make assembly and interchangeability easy. The D7 operators are available in two different body styles to meet every application need. Both operators exhibit a low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments.

Pilot Devices

D7 Devices D7D Monolithic

E-Stops

M22 Beacons & Alarms

Product Comparison

Two Operator Types

D7P is a plastic operator with a captive black plastic front bezel. Constructed of high-grade thermoplastics the D7P is the corrosion resistant solution for harsh environments.

For super tough applications, the D7M has a die-cast zinc housing and mounting ring for rugged durability. Both are finished with corrosion resistant chrome plating. The D7M also features a captive shiny metal bezel for a polished appearance.

Specifications

Push buttons

  • Flush & Extended
  • Illuminated & non-illuminated
  • Mushroom 40mm & 60mm
  • Musroom Illuminated in 40mm
  • Guardian in illuminated & non-illuminated
  • 3-position Push-Pull operators in illuminated & non-illuminated
  • 2-position & 3-position Multifunction in illuminated & non-illuminated

Selector Switches

  • Illuminated & non-illuminated
  • 2-position, 3-position, 4-position
  • Key-Operated

Pilot Lights

Selector/Jog Switches

Potentiometers

Pushbutton Stations

Enclosures

Accessories

  • Mechanical life: most operators ten million operations, contact blocks five million operations
  • Electrical life: 500,000 cycles at 3A to ten million at 0.1A
  • Self-cleaning contacts
  • IP 66
  • Type 4/13 and plastic operators Type 4X
  • UL 46E, NEMA A600 and Q600 listed.
  • 10 Amp continuous current rating
  • Special Contact Blocks & Power Modules
  • H-Bridge & Gold Plated Contacts
  • Molded Inscription Caps/Diffusers
  • Custom Printed Caps/Diffusers
  • Touch-Safe —IP 20 protection.
  • Long Lasting Integral LED Assemblies



Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
D7 Pilot Devices Overview Flyer Brochure PRODPROF-PILOTDEVICES
D7 Pilot Devices Quick Guide Guide Mat-D7Pilot
IEC vs NEMA type Push Buttons White Paper TECH-IECvsNEMA
