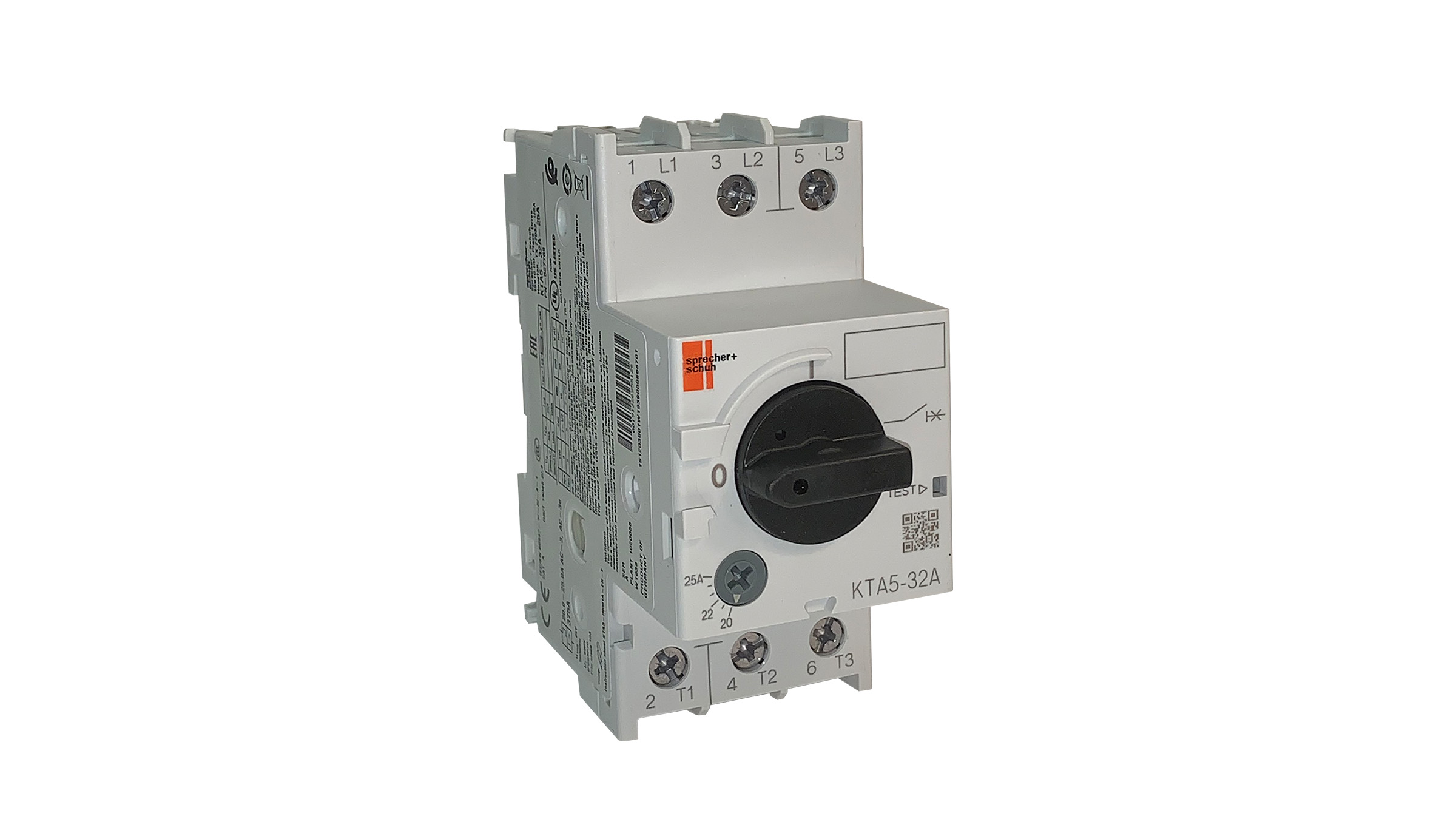

KT5 Control and Protection to 32A


  • Manual motor controllers UL tested and suitable for a variety of circuit control and protection needs
  • Manual motor controllers UL tested and suitable for a variety of circuit control and protection needs
Manual motor controllers UL tested and suitable for a variety of circuit control and protection needs
Manual motor controllers UL tested and suitable for a variety of circuit control and protection needs

Manual motor controllers UL tested and suitable for a variety of circuit control and protection needs


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
KT5
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Series KT5 devices are UL listed as Manual Motor Controllers (with optional approvals for Suitable as Motor Disconnect and Suitable for use in Group Installation).

Group motor installations eliminate the need for individual branch short circuit protective devices for each motor circuit, reducing panel space, installation & wiring time, and costs.

There is only one Branch Circuit Protective Device (BCPD) for the “Group”.

These devices meet requirement of Motor Protective Switching Devices (MPSD) as per IEC 60947-4-1 and Circuit Beaker as per IEC 60947-2 standard for application outside of North America.

Motor Controllers & MCCBs

KT9

KTV9 for VFDs

KTU9 MCCBs

Ecombo

Enclosed

KT5

60mm Bus Bars

Product Comparison

KT5 Motor Circuit Controllers
  • Manual Starter Applications
  • Traditional Group Motor Applications
  • Motor Disconnect Applications
  • Self-Protected Manual Combination Starter Applications (Type E)
  • Individual Combination Starter Applications
  • Multi-motor Starter Combination Applications
KT9 Motor Controllers
  • Manual Starter Applications
  • Traditional Group Motor Applications
  • Motor Disconnect Applications
  • Self-Protected Manual Combination Starter Applications (Type E)
  • Individual Combination Starter Applications
  • Multi-motor Starter Combination Applications
KTU9 Molded Case Circuit Breakers
  • Feeder Circuits for small cabinets, distribution panels, branch circuit protection, transformers, and heaters
  • Control circuits for control circuit transformers and power supplies
  • Industrial Heating applications
  • Air conditioning and refrigeration applications

Specifications

  • Overload protection – trip class 10A
  • Phase loss sensitivity
  • Disconnect function
  • Suitable for three- and single-phase applications
  • UL group motor and IEC Type 1and Type 2
  • International certifications
  • Interrupting rating @400V up to 100 kA

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
KT5 Motor Controllers Overview Flyer F-KT5
Methods of Applying KT Motor Controllers White Paper Tech-KT_App_Notes
