60mm Bus Bars

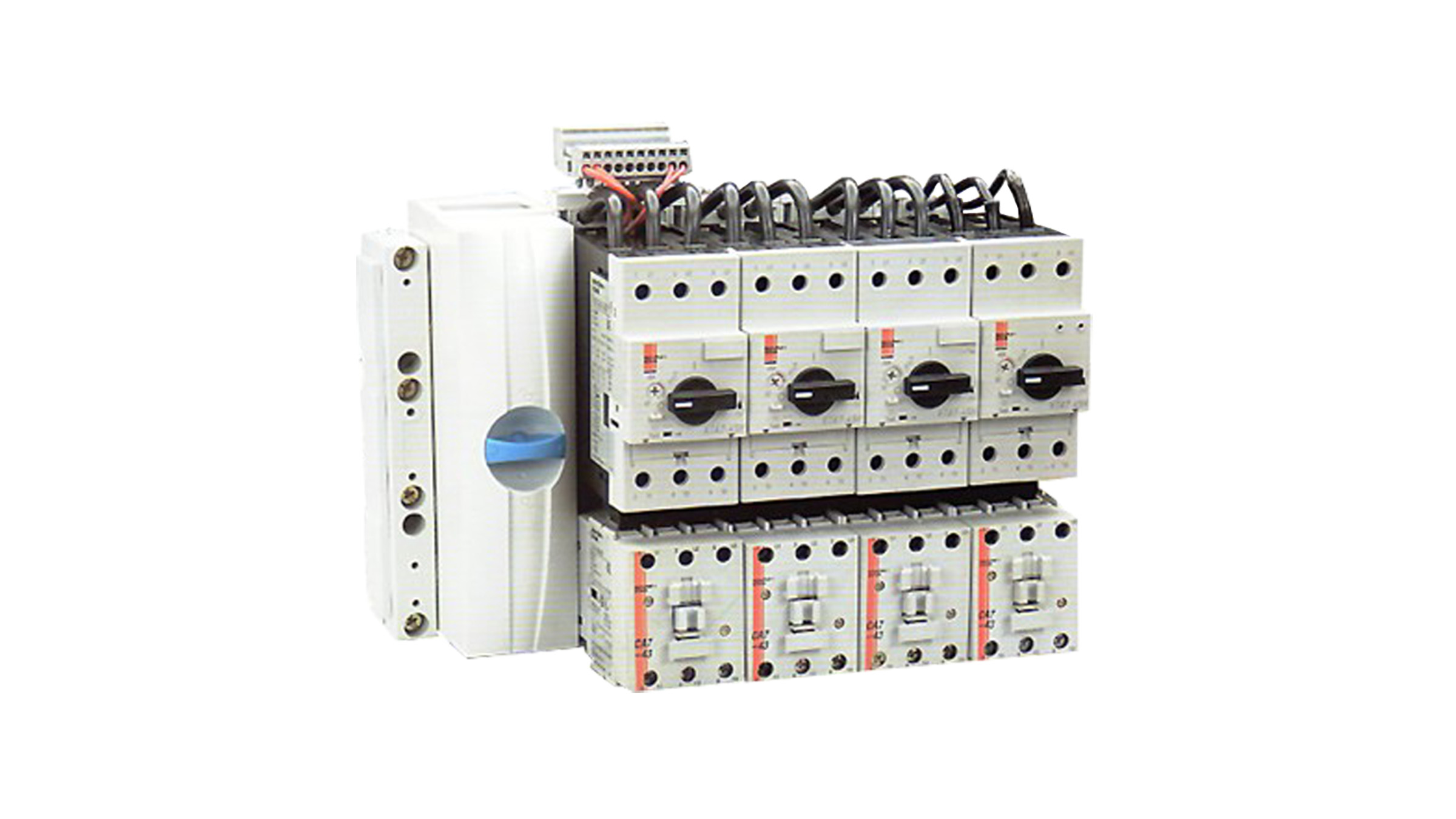

  • Reduce panel assembly time with a modular bus bar system from the experts at Wohner

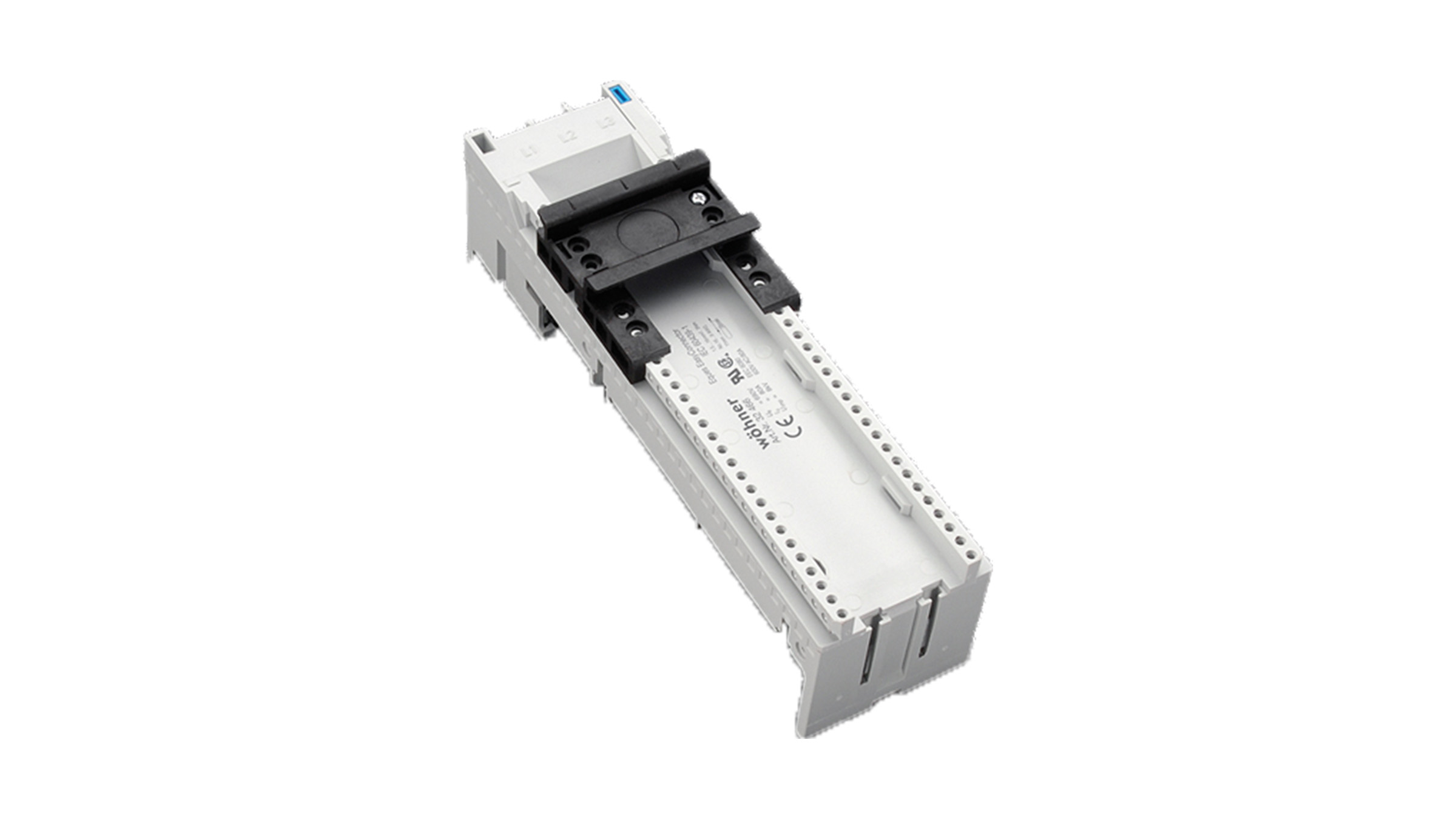

  • Reduce panel assembly time with a modular bus bar system from the experts at Wohner
Reduce panel assembly time with a modular bus bar system from the experts at Wohner
Reduce panel assembly time with a modular bus bar system from the experts at Wohner

Reduce panel assembly time with a modular bus bar system from the experts at Wohner


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
60mm Bus Bars
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

The Wöhner Panel System is a group of current carrying component modules which simplifies panel design, layout and assembly. Sprecher + Schuh is proud to partner with Wöhner USA to offer 3-Phase 60mm Bus Bar Systems in conjunction with Sprecher + Schuh starters, controllers and other components for a complete panel assembly that offers flexibility, modularity and reduced assembly costs.

The Wöhner 3-Phase 60mm bus bar system offers power distribution throughout your panel with a minimum of installation labor. Panel systems can span horizontally, or vertically, depending on the application needs and enclosure size. Sprecher + Schuh starters, motor controllers and other components (mounted to removable modules) snap directly to the current carrying bus bar system, eliminating the need for direct power wiring.

Motor Controllers & MCCBs

KT9

KTV9 for VFDs

KTU9 MCCBs

Ecombo

Enclosed

KT5

60mm Bus Bars

Wohner busbars logo

For more information visit our partner.

Visit Wohner

Product Comparison

Modular units can be assembled elsewhere, installed or removed and replaced in a snap. Plug-in modules reduce assembly time and provide the user with a system that can be updated and maintained by simply unplugging and replacing a unit with in-stock modules. The 60mm System eliminates traditional components like power distribution blocks, individual conductors, wiring duct, wire markings and cable ties. Bus bar systems are available in a variety of lengths and amperages up to 4000A max. Touch-safe covers and future provisions enable expansion without the need for redesign or retrofitting.

Specifications

  • Copper Bus Bars and supports up to 4000 Amps
  • Source Connections & terminals
  • Touch-safe, insulating covers
  • Mounting Modules, adjustable for 5mm to 10mm thick bus bars
  • Molded Case Circuit Breaker Power Connectors for most brands
  • Bus bar mounted Fuse HoldersWo

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
Wohner 60mm Bus Bars Overview Flyer F-Busbars
