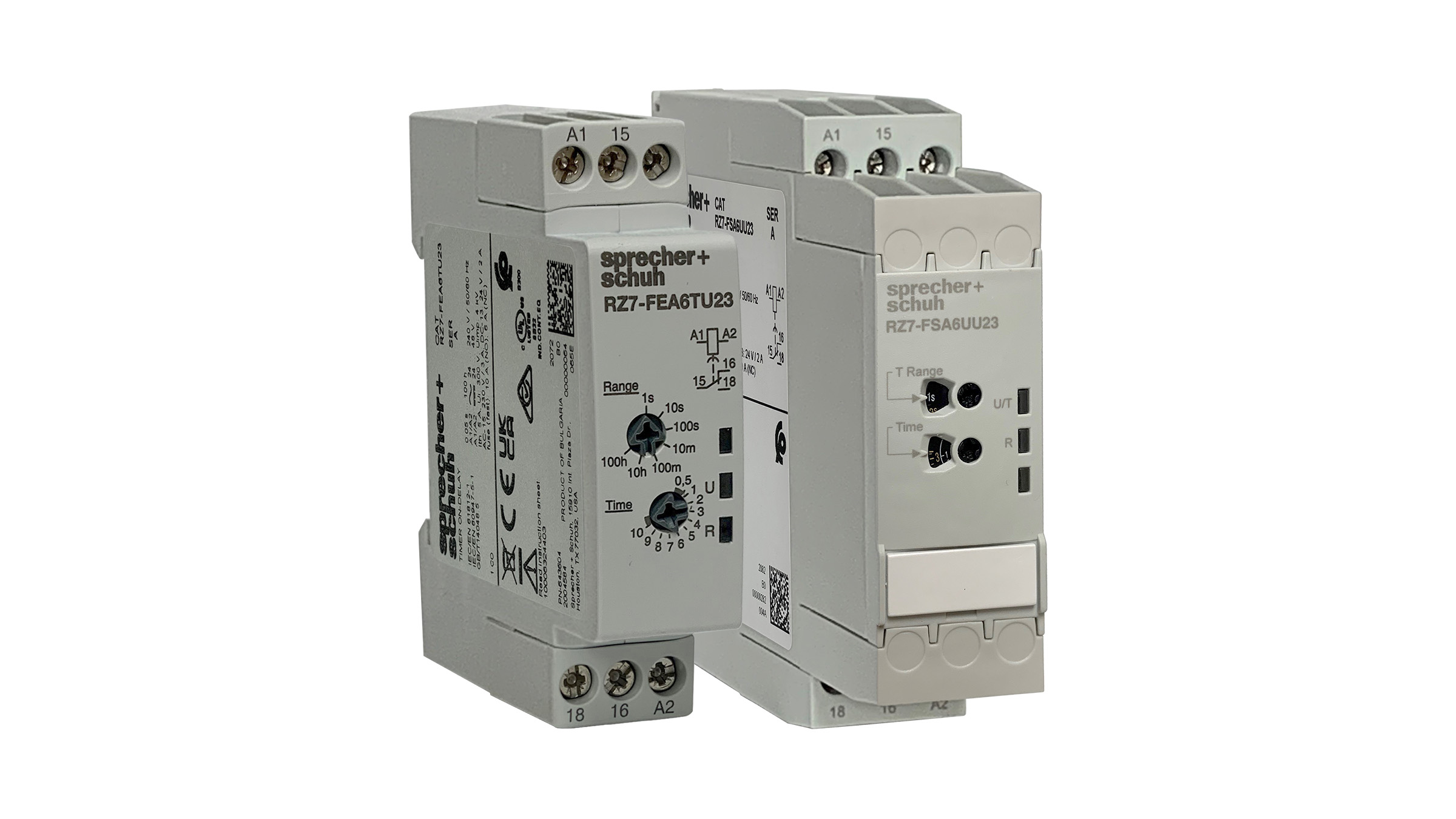

RZ7 Electronic Timing Relays


  • Timing relays with a wide variety of delay options, time ranges and output functions, including a hazardous location relay.
Timing relays with a wide variety of delay options, time ranges and output functions, including a hazardous location relay.

Timing relays with a wide variety of delay options, time ranges and output functions


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
RZ7 Timers
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

RZ7-FS Electronic Timing Relays

Precision DIN-rail mounted timing relays for any industrial application

RZ7-FS precision electronic timing relays offer 19 different output functions applicable to all types of industrial control. In addition to standard ON-Delay and OFF-Delay relays, the series also includes many specials such as an OFF-Delay that operates without supply voltage. Various timing ranges from 0.05 seconds to 60 hours are available, with many relays offering multi-time setting capability in the same device.

RZ7-FE Electronic Timing Relays

The economical choice for most industrial timing applications

RZ7-FE electronic timing relays offer seven popular output functions in an economical package. This series is especially designed for applications where a high quality, yet basic timing relay is required. Timing formats include ON-delay, OFF-delay, Wye-Delta and four other choices. All models are multi-time relays, meaning that various time ranges (from 0.05 seconds to 10 hours) can be selected from the face of the relay.

Control & Timing Relays

CS7 Relays

CS8 Relays

RZ7 Timers

Relpol Relays

Gefran Relays

Product Comparison

RZ7-FS Timing Relays
  • Space saving 22.5 mm design (1” x 3” x 4”)
  • State of the art automatic voltage switching
  • AC or DC supply voltages
  • Surface, DIN rail or direct mount
  • Timing ranges from 0.05 seconds to 60 hours
  • Multi-function relay available
RZ7-FE Timing Relays
  • Small 17.5 mm (1” x 3” x 3”)
  • Effective, economical timer
  • Versions available with 1 NO Contact
  • Timing ranges from 0.05 seconds to 10 hours
  • Multi-function relay available

Specifications

  • UL File E14840, C-UL up to 240VAC, CE
  • Relative Scales setting knob
  • 30 million mechanical operations
  • UL File E14840, C-UL, CE
  • Relative Scales setting knob
  • 1 NO or SPDT Contacts
  • 20 million mechanical operations

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
RZ7 Electronic Timing Relays Overview Flyer F-RZ7
