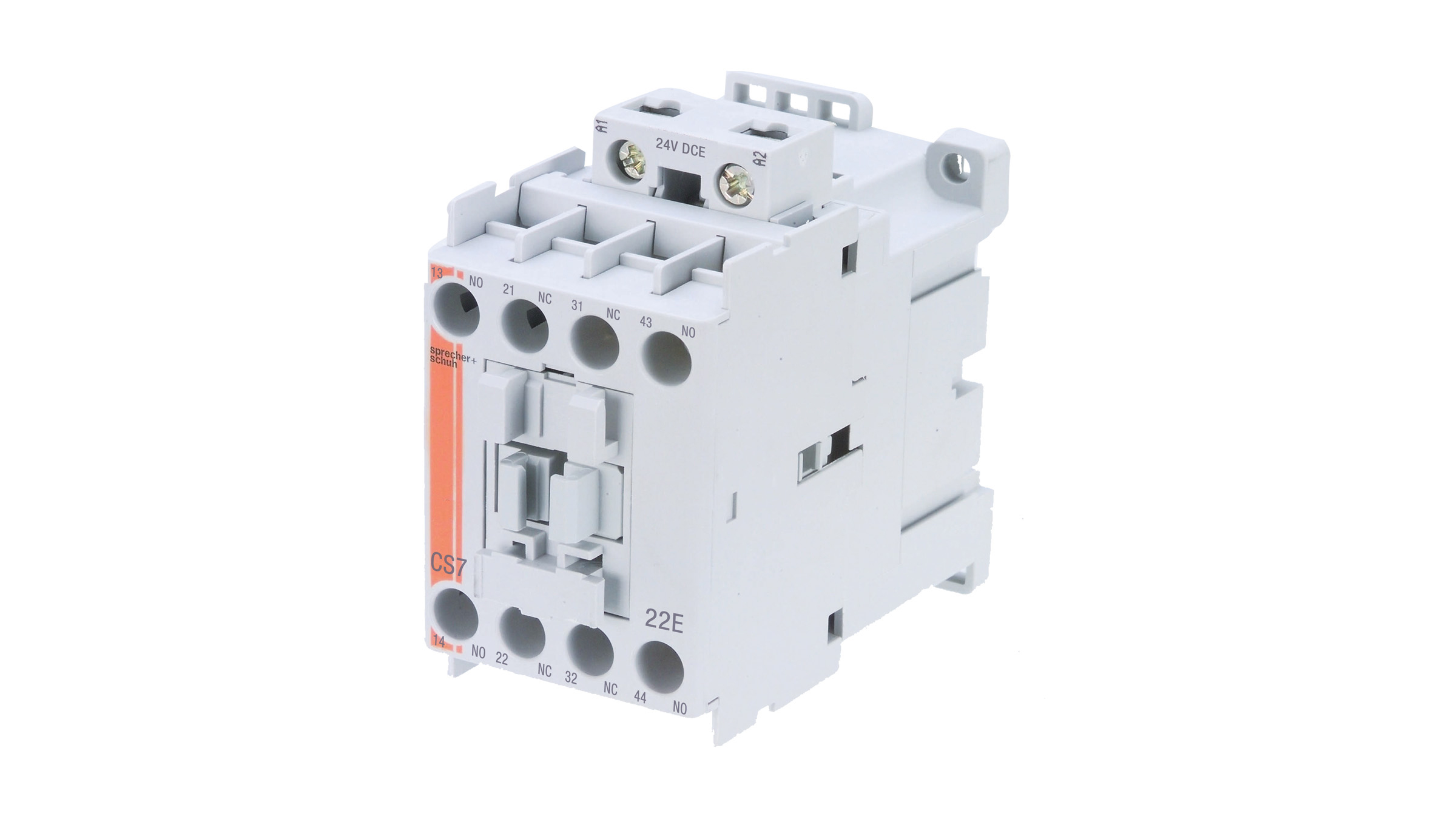

CS7 General Purpose Control Relays


  • Reliable, general purpose relays for heavy duty applications
Reliable, general purpose relays for heavy duty applications

Reliable, general purpose relays for heavy duty applications


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
CS7 Relays
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

CS7 Industrial Control Relays share the same design as our modern CA7 contactor range. They are compact and designed for heavy-duty industrial control applications where reliability and versatility are essential. Three models for any control application: Standard, Master and Bifurcated.

The CS7 line also includes voltage options with Electronic DC Coils. CS7E Industrial Relays are the same size as AC relays which results in a lower depth than typical DC relays. CS7E relays are more energy efficient, easier to wire and promote uniform panel appearance. Available from 12V to 220V DC.

Control & Timing Relays

CS7 Relays

CS8 Relays

RZ7 Timers

Relpol Relays

Gefran Relays

Product Comparison

Standard

The standard CS7 relay utilizes x-stamped contact technology that reliably switches typical control circuits up to 10A (AC-15).

Master

For master relay circuits requiring higher amp capacity, the CS7-M Master Relay is designed for control circuits up to 15A (AC-15).

Bifurcated

For applications requiring low energy switching such as PLC's or other electronic circuits, the CS7–B relay with bifurcated contacts is designed for 20 million operations down to a signal level of 5V @ 3mA. The bifurcated H-bridge design divides each movable gold contact into two sections at the tip of the spanner which provides a higher degree of reliability for low signal applications.

Specifications

  • IEC industrial relays
  • Mechanically linked contact performance per IEC 60947-5-1
  • Gold plated, bifurcated version for low level switching applications
  • Master control relay version rated 15 A (AC-15)
  • Solid-state and pneumatic timing modules
  • 4…10 poles

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
CS7E Industrial Relay with 24V DC Electronic Coil Overview Flyer F-CS7E
Contact Block Performance & Selection White Paper TECH-CONTACT_PERFORMANCE
How to Select a Surge Suppressor White Paper TECH_Surge_Suppression
