CS8 Miniature Control Relays


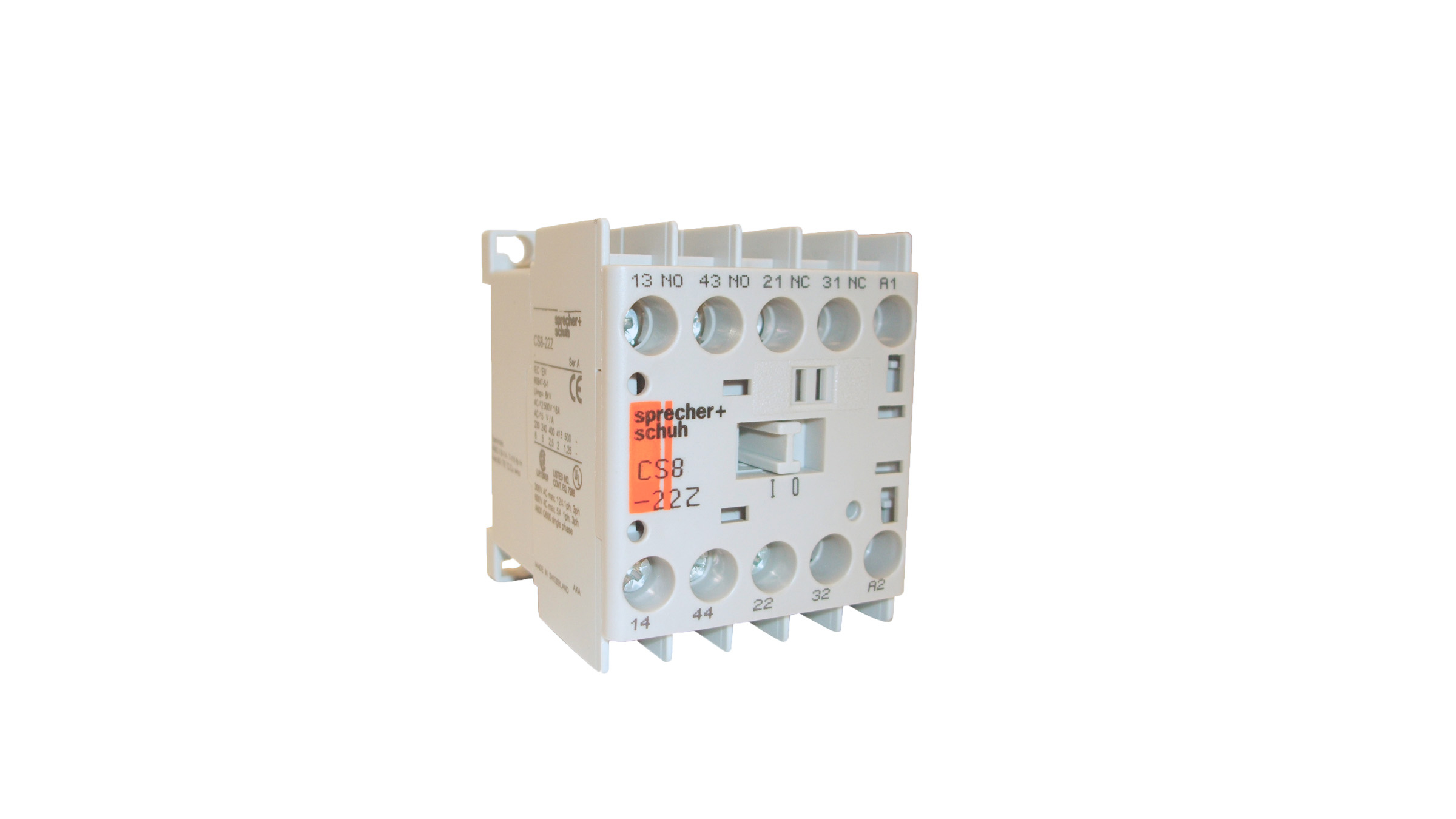

  • Maximum performance in minimal space with a compact build and superior design just like the CA8 contactor series.
Maximum performance in minimal space with a compact build and superior design just like the CA8 contactor series.

Maximum performance in minimal space with a compact build and superior design just like the CA8 contactor series.


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
CS8 Relays
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Small But Rugged

Sprecher + Schuh has subjected this miniature relay series to monitored endurance tests that demonstrate their ruggedness. Under normal duty, CS8 contacts have a maximum electrical life of 700,000 operations, while the AC magnet system has a mechanical life of 15 million operations.

The coil is designed for absolute undervoltage reliability. Undervoltages that do not cause the relay contactor to close can be withstood indefinitely without damage.

The body of the device is sturdy as well. The front housing, containing the phase partitions and screwdriver guides, is manufactured in one piece. Front and rear housing are then joint-fitted together.

Control & Timing Relays

CS7 Relays

CS8 Relays

RZ7 Timers

Relpol Relays

Gefran Relays

Product Comparison

CS7/CS8 Control Relays
  • DIN rail or base mounting
  • Up to 8-poles
  • 15 million operations
Relpol Ice Cube Relays
  • DIN rail mounted
  • Blade and tube type
  • PCB relays
  • Terminal block relays
Gefran Solid State Relays
  • 1-Phase panel mount
  • 3-Phase DIN rail mount
  • AC & DC control models

Specifications

Superior Contact Reliability

  • Bifurcated H-bridge design
  • Reliable for low signal applications
  • For use with PLC and other electronic circuits operating at signals as low as 15V @ 2mA
  • Snap-on auxiliary contact blocks
  • 45mm wide
  • Same low profile whether AC or DC

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
Contact Block Performance & Selection White Paper TECH-CONTACT_PERFORMANCE
How to Select a Surge Suppressor White Paper TECH_Surge_Suppression
Literature LibraryLiterature Library

Literature Library

Find a wide selection of publications and technical documentation for all products offered.

Search Literature Library
KnowledgebaseKnowledgebase Support Center

Technical Tips & FAQs

Browse our knowledge base of technical tips and frequently asked questions.

Learn more
