Gefran Solid State Relays


  • Panel Mount or DIN-Rail Mount Relays for Single Phase Up To 120 Amps Or Three Phase Up To 55 Amps
  • Panel Mount or DIN-Rail Mount Relays for Single Phase Up To 120 Amps Or Three Phase Up To 55 Amps
Panel Mount or DIN-Rail Mount Relays for Single Phase Up To 120 Amps Or Three Phase Up To 55 Amps
Panel Mount or DIN-Rail Mount Relays for Single Phase Up To 120 Amps Or Three Phase Up To 55 Amps

Panel Mount or DIN-Rail Mount Relays for Single Phase Up To 120 Amps Or Three Phase Up To 55 Amps


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
Gefran
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Sprecher + Schuh is proud to offer Gefran Solid State Relays for high speed switching and long life. In specific applications, solid state relays offer many advantages over electromechanical devices including no moving parts or contact arcing. In addition, solid state relays are directly compatible with logic components such as microprocessors and PLCs. Available in panel mount or DIN rail mounting options, Gefran Solid State Relays offer ampere ranges from 15A up to 90A, and up to 600V AC.

Common Applications

  • Plastic extrusion lines and injection presses
  • Packing and packaging machines
  • Polymerization and production plants for synthetic fibers
  • Rubber vulcanization plants
  • Driers for ceramics and construction elements
  • Chemical and pharmaceutical industry
  • Industrial electric furnaces
  • Food processing plants
  • Thermoforming
  • Control application with high speed switching
  • Heat treatments
  • Mold heating/cooling control units
  • Refrigeration and Air conditioning

Control & Timing Relays

CS7 Relays

CS8 Relays

RZ7 Timers

Relpol Relays

Gefran Relays


Product Comparison

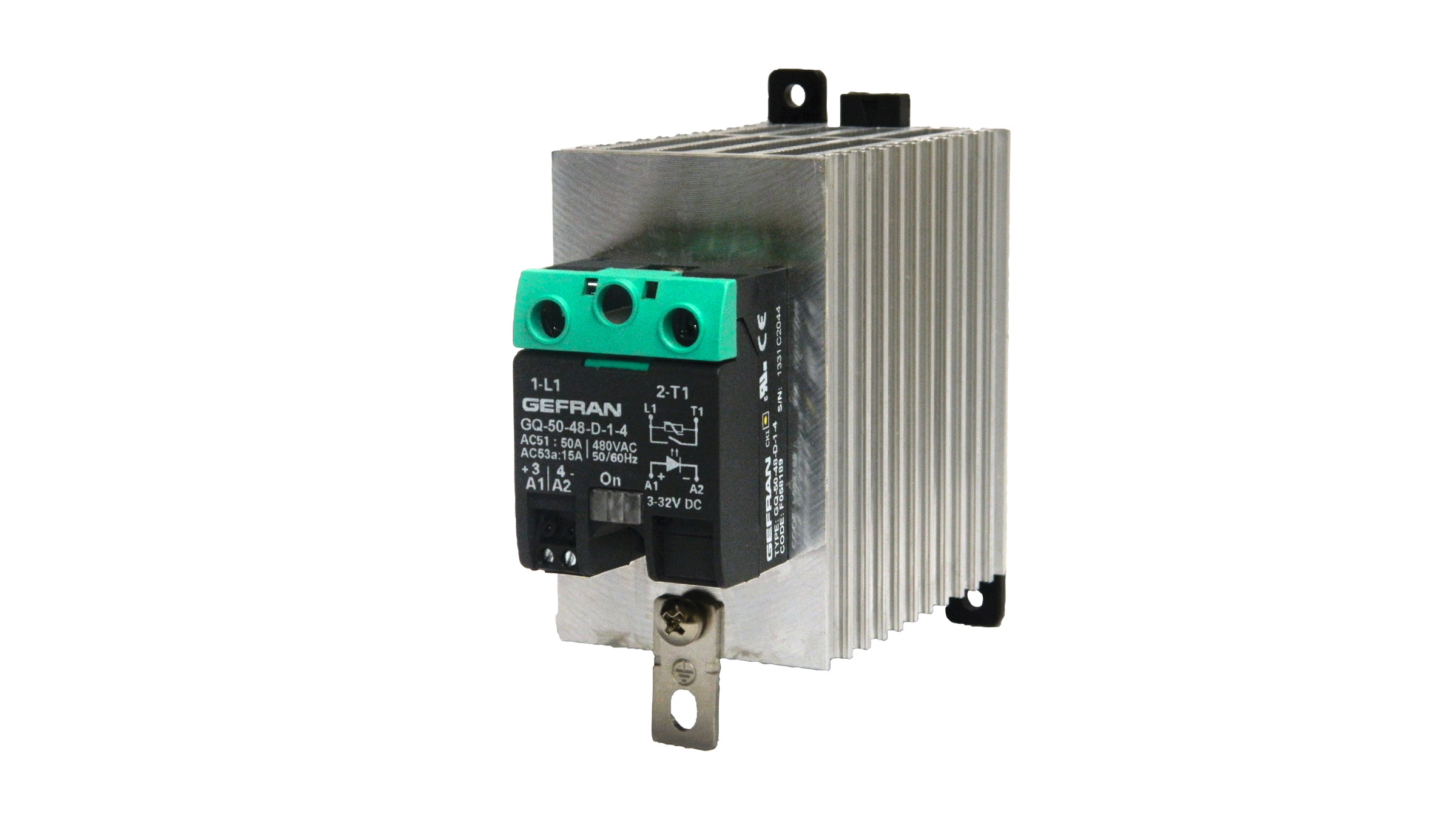

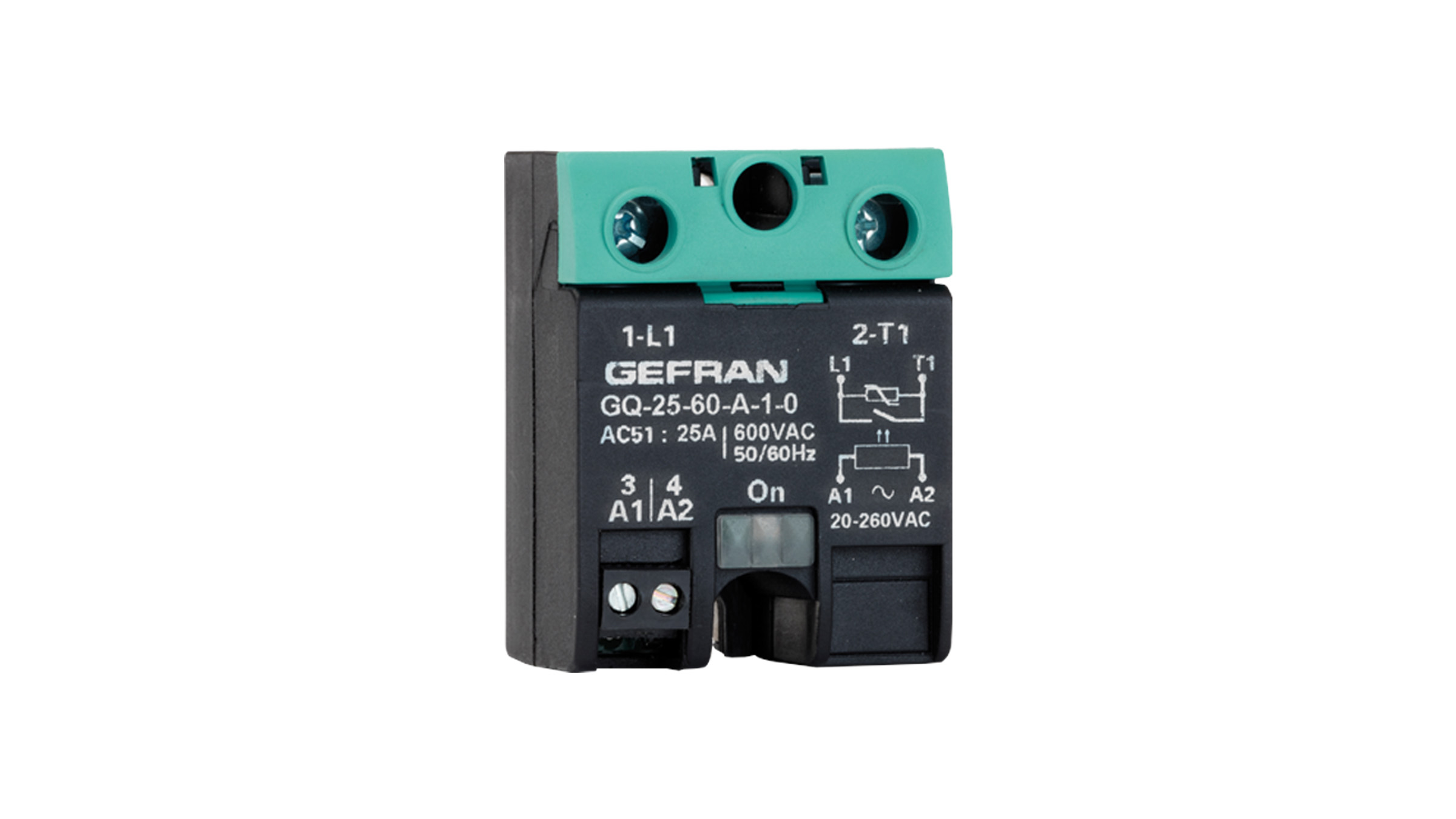

Series GQ Panel Mount “Hockey Puck” Relays Up To 90A

The GQ range of single-phase, zero crossing relays offers an antiparallel thyristor output, the most used solid state relay in industrial applications. GQ Relays can be used for resistive, inductive and capacity loads. This relay has been designed to stand high-value transitory applications and is available up to 90A @ 460V AC.

Specifications

Series GQ “Hockey Puck” Relays

  • Panel Mount
  • Output: AC Loads up to 90Amps @230V or 600V, Amps rated at 40ºC
  • Input: 3…32V DC, 20…260V AC
  • Zero crossing switching technology
  • Internal MOV protection
  • Red “ON” LED Indicator
  • Heatsinks available
