Series CDP2 Contactors


  • Definite Purpose, high performance, and economical  contactors for ideal for commercial applications up to 90A
Definite Purpose, high performance, and economical  contactors for ideal for commercial applications up to 90A

Definite Purpose, high performance, and economical contactors for ideal for commercial applications up to 90A


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
Series CDP
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Sprecher + Schuh's definite purpose contactors are ideal for commercial applications including air conditioning, refrigeration, resistive heating and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by definite purpose contactor standards.

Contactors

Series CA7 Contactors

Series CA9 Contactors

Series CA8 Contactors

Series CDP

Product Comparison

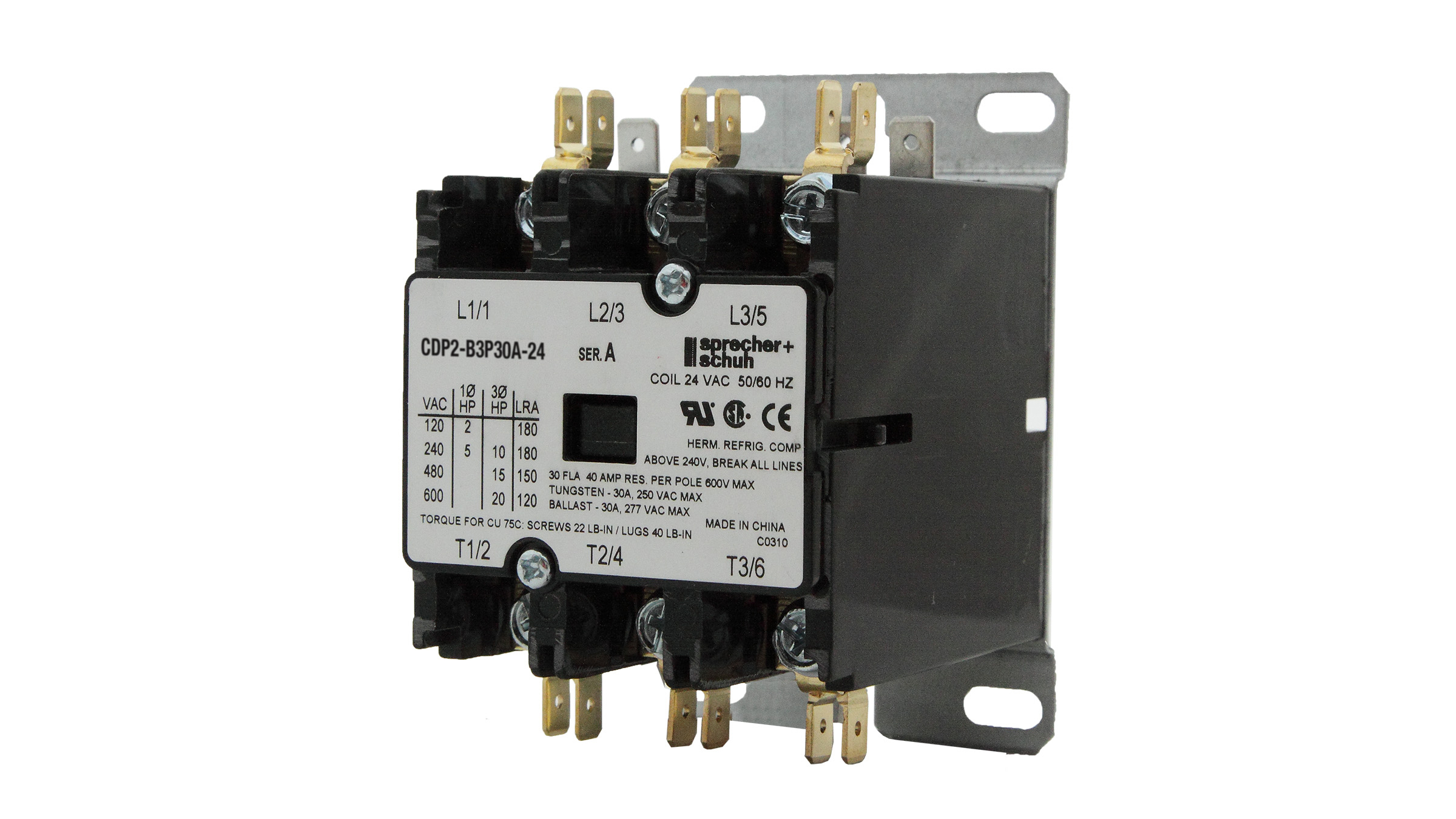

CDP2 Definite Purpose Contactors
  • Covers commercial applications up to 90A / 50HP

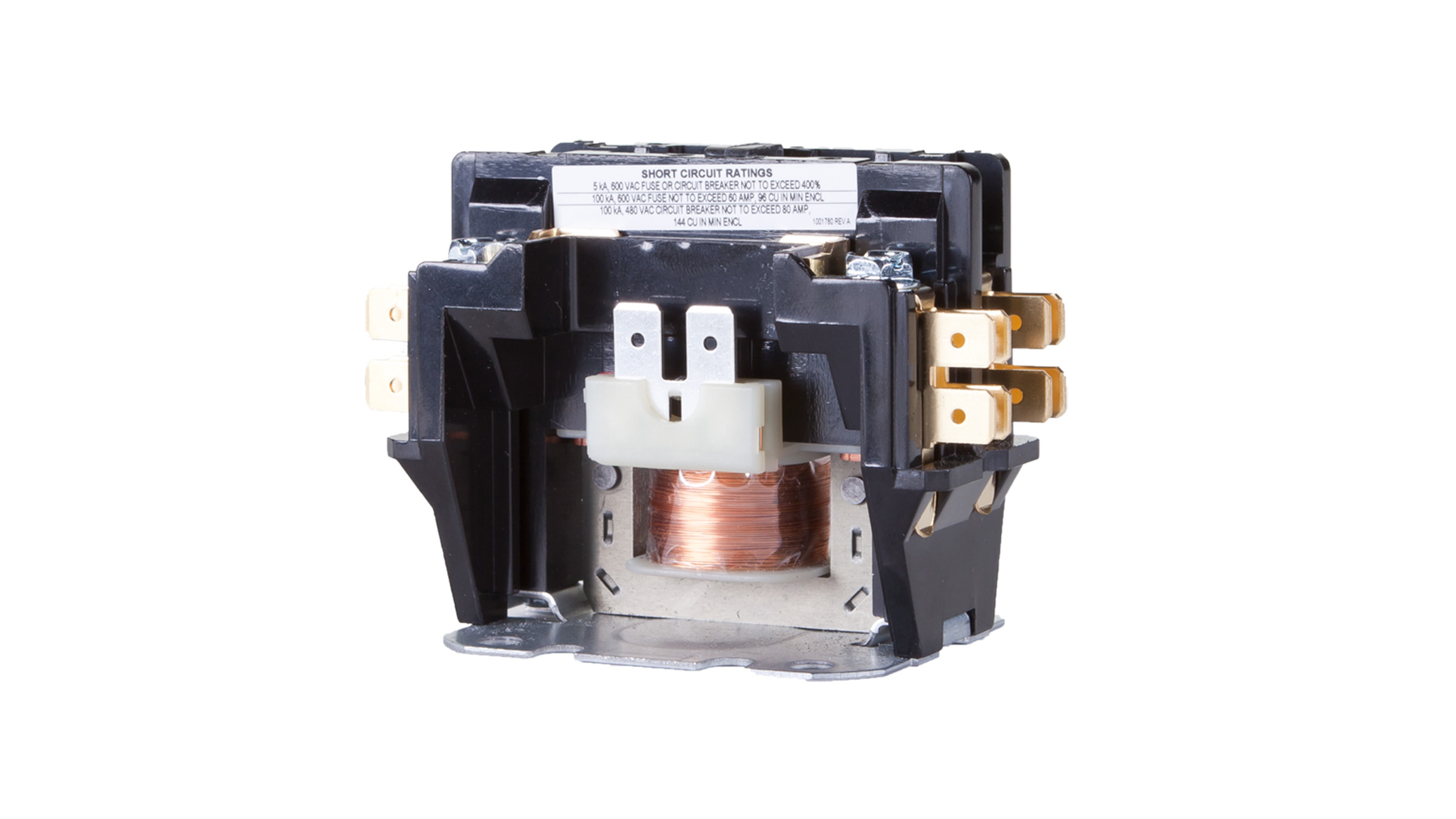

  • Available in one, two, three and four pole
  • Meet or exceed electrical and mechanical requirements defined by definite purpose contactor standards
  • Three convenient wire connection methods
CA7 Series Contactor
  • Covers up to 75HP industrial applications
  • Features small dimensions, as little as 45mm wide
  • Uses interchangeable accessories for all contactor sizes
  • Provides flexibility with reversible coils for group installation
  • Has dual-cage clamp lugs on CA7-30 and larger units
  • Designed and tested with respect to Type 1 and 2 Coordination

Specifications

  • Universal mounting plate
  • 25A & 30A have screw power terminals that will accept ring-tongue terminals
  • 40A and larger have box power terminals
  • Dual quick-connect power terminals on all sizes
  • Dual quick-connect coil terminals on all sizes
  • Double break power contact design with feed-thru wiring
  • Class B (130°C) coil insulation
  • Double E magnet assembly

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
CDP2 Definite Purpose Contactors Overview Flyer F-CDP2
CDP Definite Purpose versus IEC Contactors White Paper Tech-CA7vsCDP
Contact Block Performance & Selection White Paper Tech-Contact_Performance
Contactor Life Expectancy White Paper Tech-ContactLife
