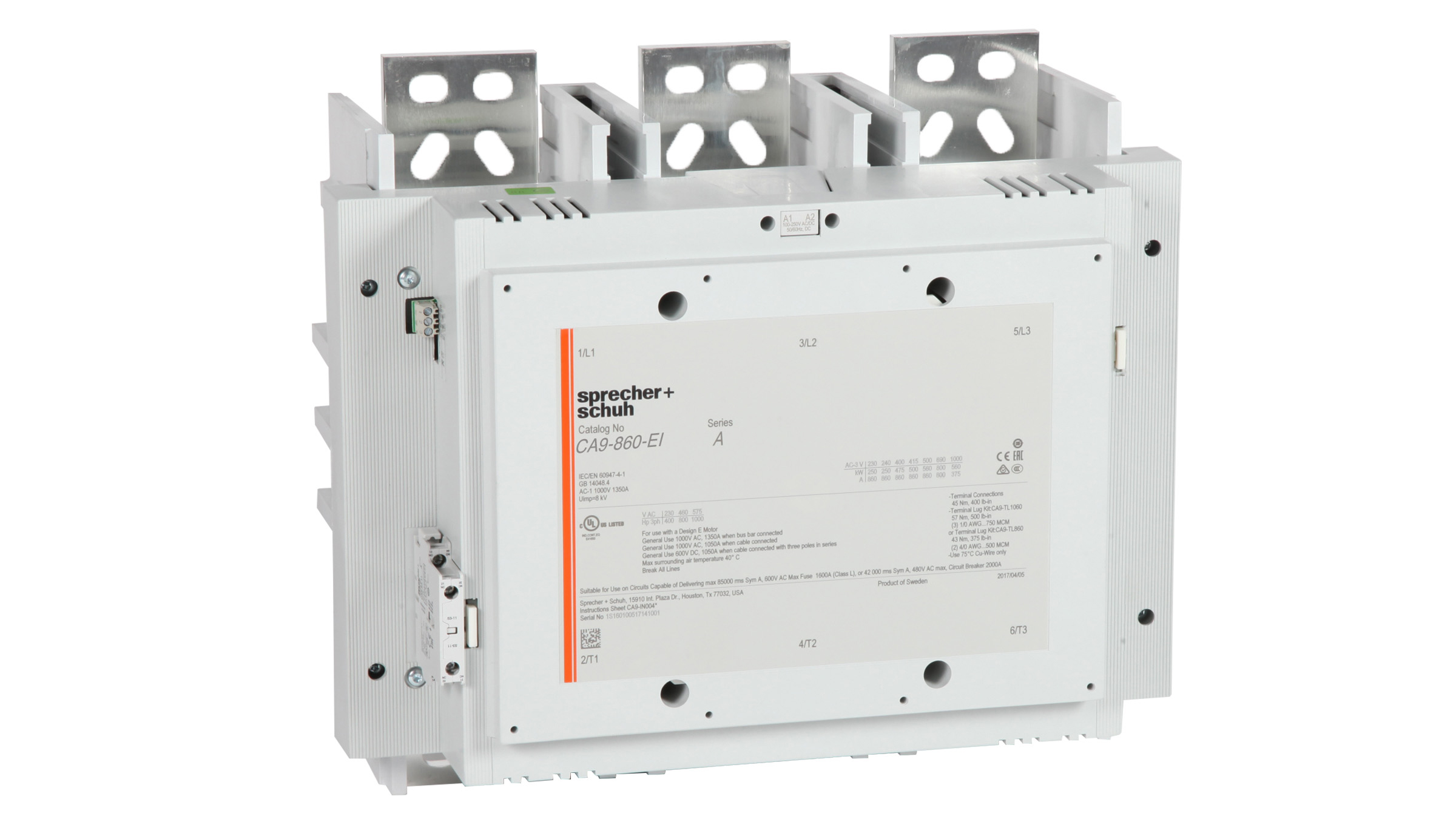

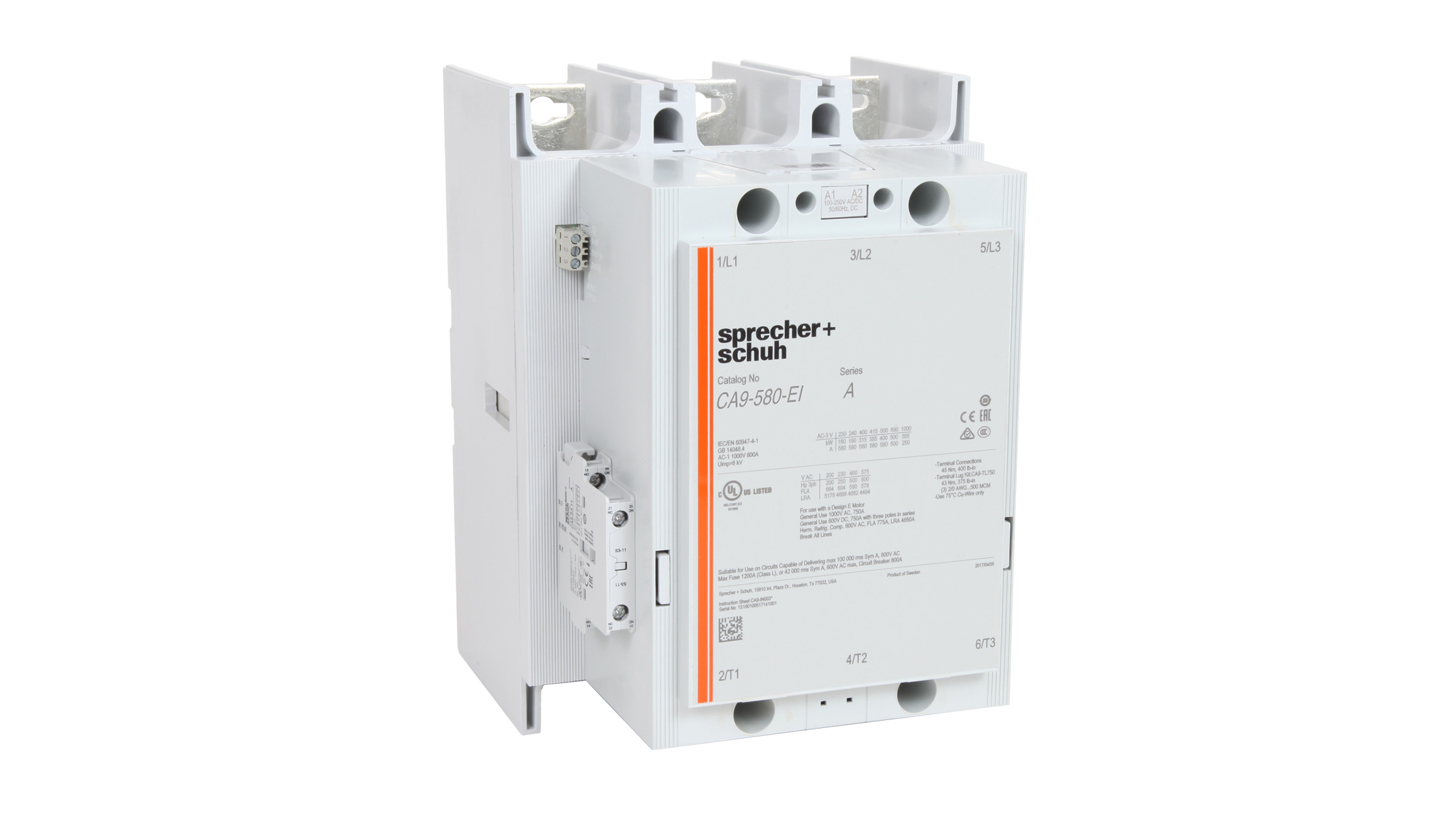

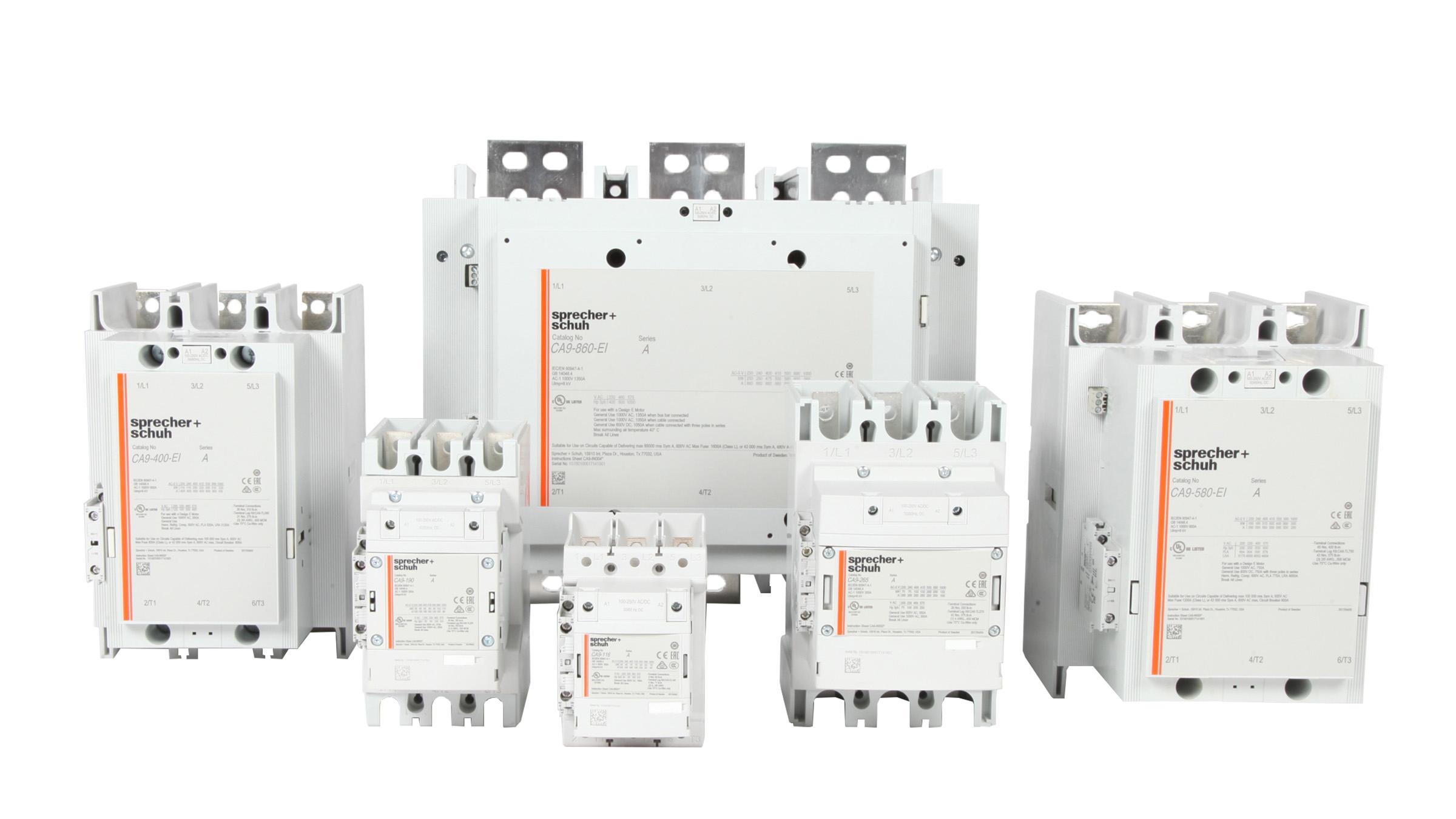

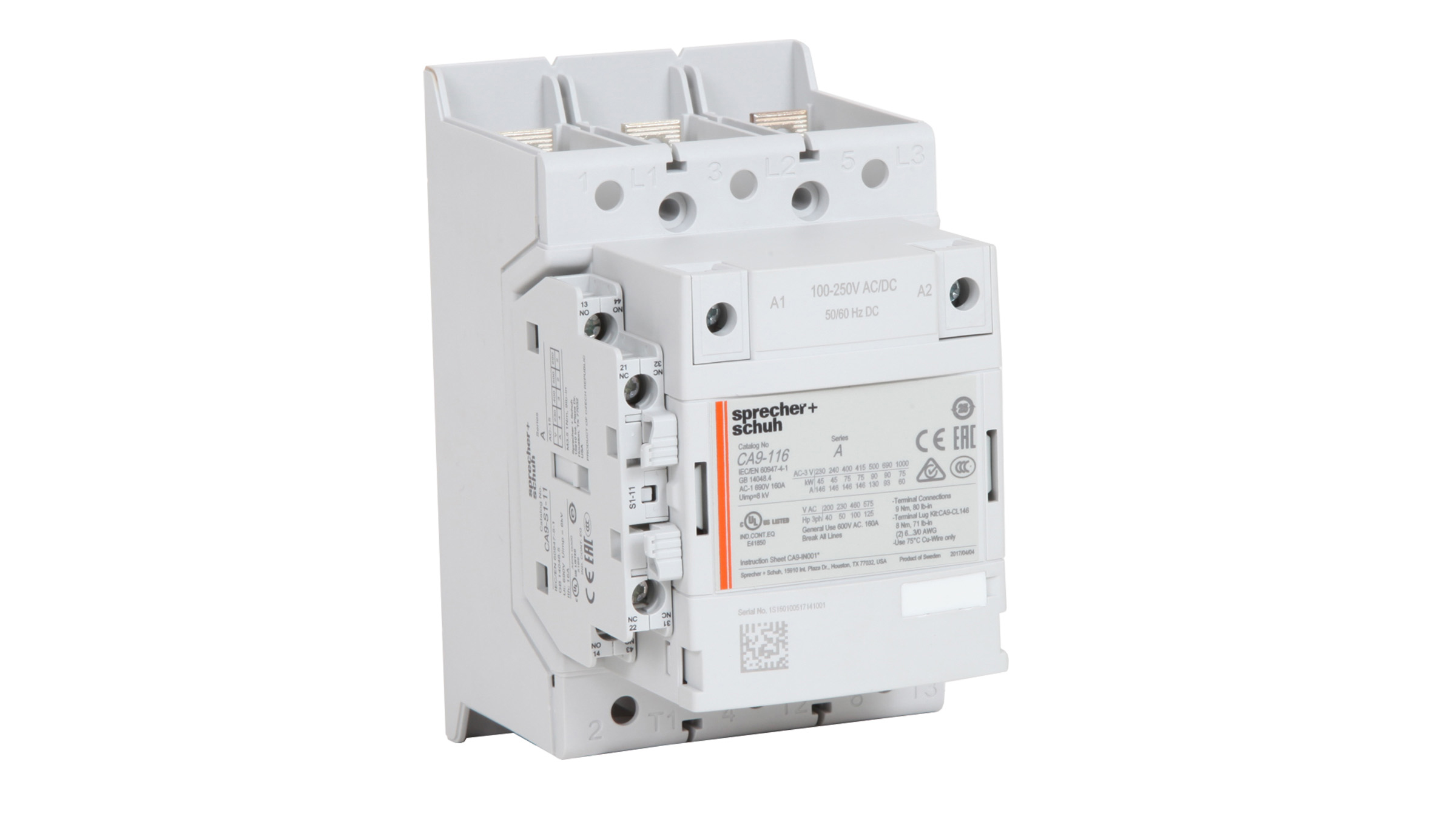

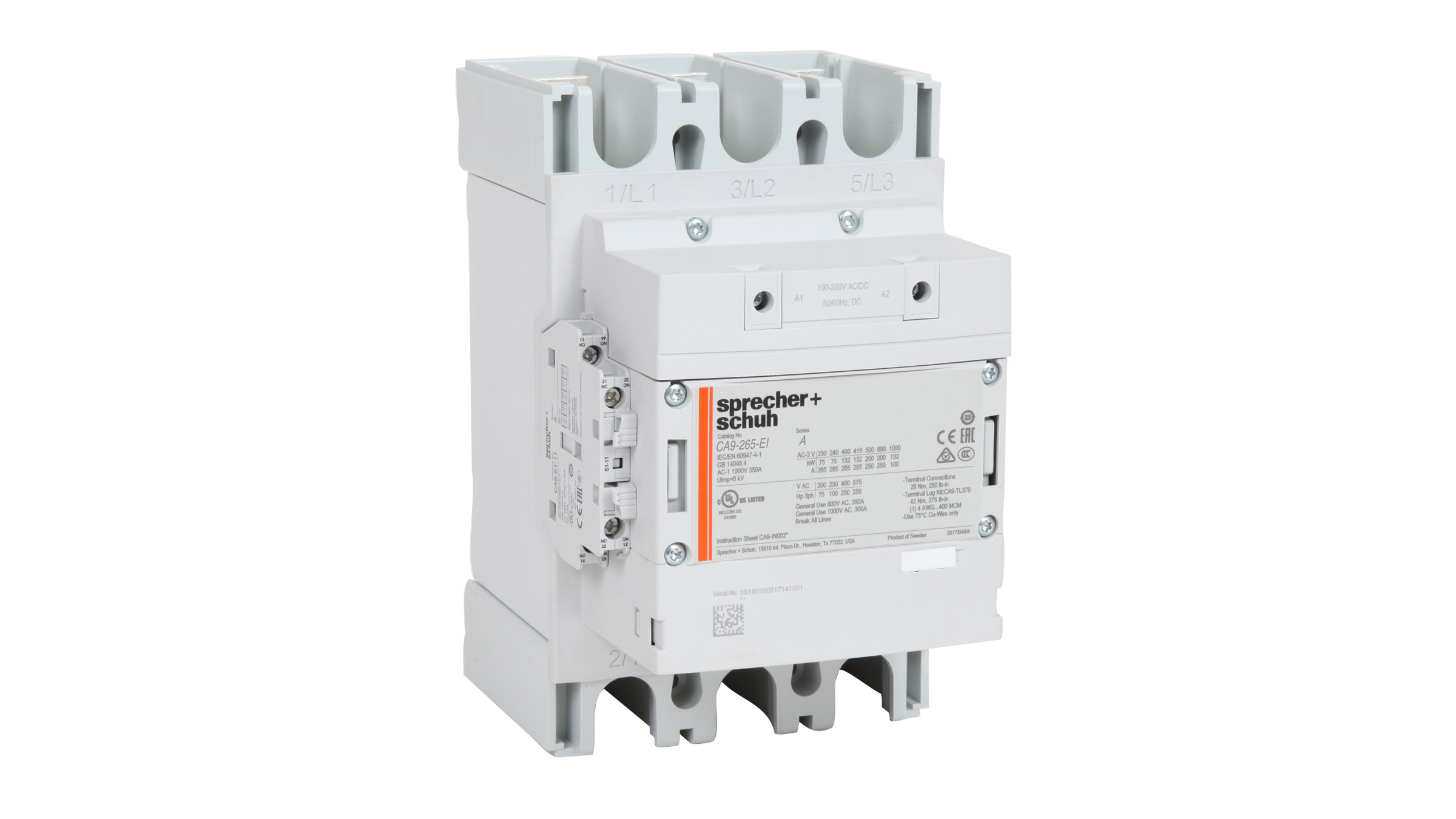

Series CA9 Contactors


  • The Modern Contactor for Demanding Applications up to 1150 HP
The Modern Contactor for Demanding Applications up to 1150 HP

The Modern Contactor for Demanding Applications up to 1150 HP


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
Series CA9 Contactors
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Sprecher + Schuh’s CA9 contactor line combines the simple function of our popular CA7 series with the rugged performance demanded in this wide horsepower range. CA9 contactors offer a smaller footprint than traditional contactors in this size class.

Contactors

Series CA7 Contactors

Series CA9 Contactors

Series CA8 Contactors

Series CDP

Product Comparison

CA9 Series Contactors
  • Covers up to 900HP industrial applications
  • Provides a dimensional advantage with a smaller size and footprint
  • Features a universal electronic AC/DC coil
  • Has various application selections, with IEC solutions up to 2650A
  • Includes expanded certifications
  • Provides extended life with arc quenching technology
CA7 Series Contactors
  • Covers up to 75HP industrial applications
  • Features small dimensions, as little as 45mm wide
  • Uses interchangeable accessories for all contactor sizes
  • Provides flexibility with reversible coils for group installation
  • Has dual-cage clamp lugs on CA7-30 and larger units
  • Designed and tested with respect to Type 1 and 2 Coordination
CA8 Series Contactors
  • Provides commercial-grade performance for motors up to 7.5 HP
  • Features low-profile design and 45mm width
  • Maintains narrow width with modular, snap-on accessories
  • Performs up to 700,000 electrical and 15,000,000 mechanical operations

Specifications

  • 116…2650 A
  • AC or DC operation
  • UL508, IEC 60947
  • Up to 600V (UL) and 1000V (IEC)
  • Reversible coil terminations
  • Mechanical interlocks
  • Front or side mount auxiliary contacts
  • Compatible with electronic overload relay
  • PLC interface capable

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
CA9 Contactors Overview Flyer F-CA9
Contact Block Performance & Selection White Paper Tech-Contact_Performance
Contactors Quick Selection Guide Guide Mat-Contactors
