CEP7 Solid State Overload Relays


  • Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)
  • Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)
  • Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)

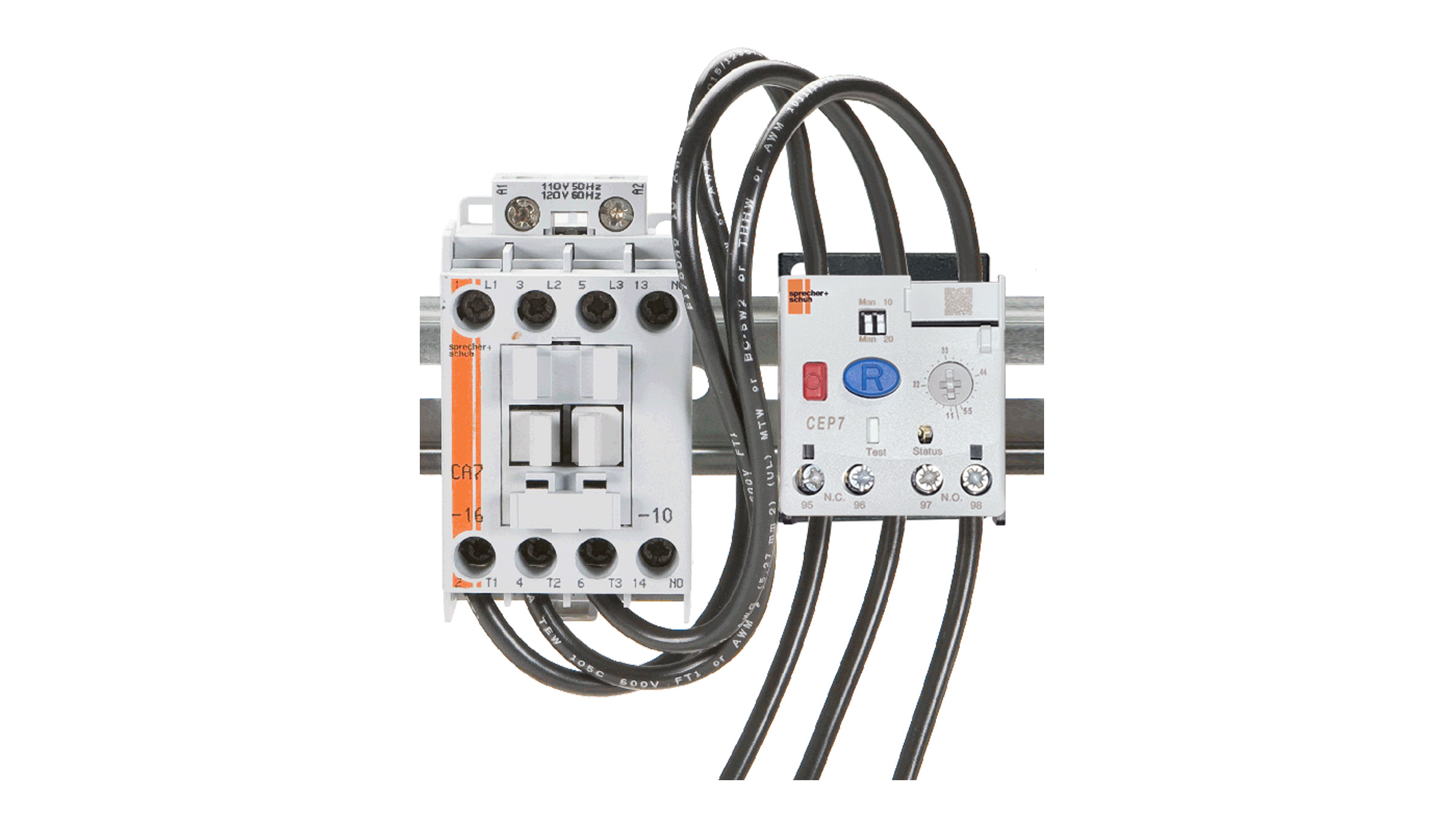

Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)
Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)
Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)

Basic-Tier Solid State Overload Protection For Connecting To CA7 Series Contactor (direct or separate mounting)


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
CEP7
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

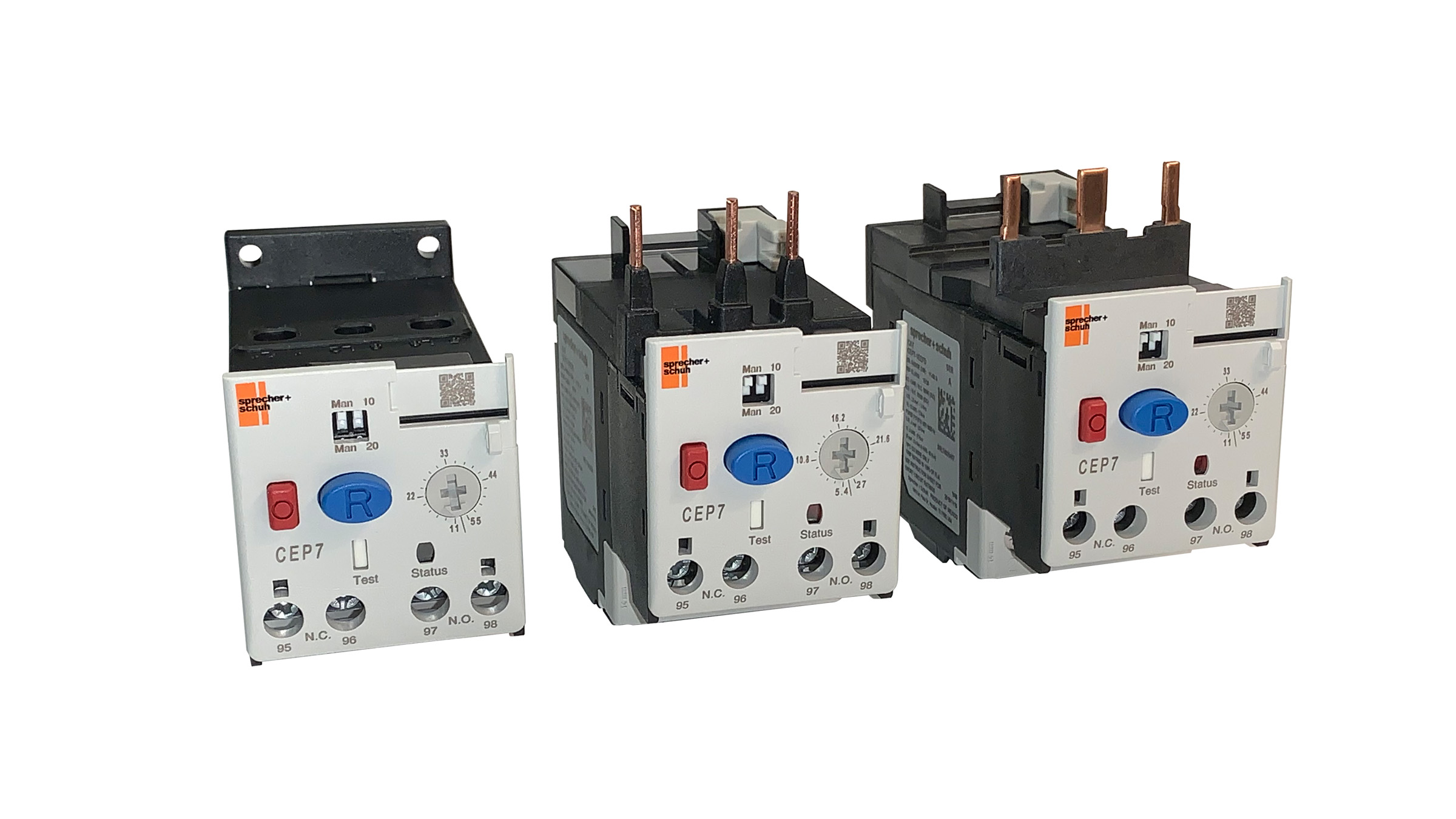

The 3rd generation CEP7 solid state overload relays offer superior motor protection with advanced features like:

  • Selectable trip class and field-installable modules
  • A wide current adjustment range of 5:1
  • Robust, self-powered design with mechanical and electrical mounting
  • Self-sealed latching mechanism
  • Single- and three-phase compatibility in same device allows for reduction in inventory SKUs

The basic concept of utilizing Application Specific Integrated Circuits (ASICs) results in an affordable solid state overload relay. This kind of versatility and accuracy was simply not possible with traditional bimetallic or eutectic alloy electromechanical overload relays. The CEP7 offers dramatically lower energy requirements that save money and reduce panel space. Check out these advanced features.

Overload Protection

CEP7

CT7N

CT8

CEP9

Product Comparison

CEP7 Solid State Overloads

CEP7 Solid State Overloads

  • Current measurement based protection
  • Low energy consumption
  • Adaptive-mount expansion modules provide adjustable levels of protection
CT7N/CT8 Thermal Bimetallic
  • Ambient temperature compensation
  • Rated for DC and variable frequency drive applications up to 400 Hz
  • Optional remote reset solenoid
CEP9 Advanced Electronic Relay
  • Provides critical motor protection functions
  • Communication and diagnostics provide detailed logs and control from relay to motor
  • Can simplify control architecture

Specifications

Wide Current Adjustment Range

CEP7-1EF Advanced Model offers:

  • Adaptive-mount Expansion Port provides for
    • Ground fault / Jam
    • Remote Reset
  • Allows for Intelli-button options

Selectable Trip Class & Reset Modes

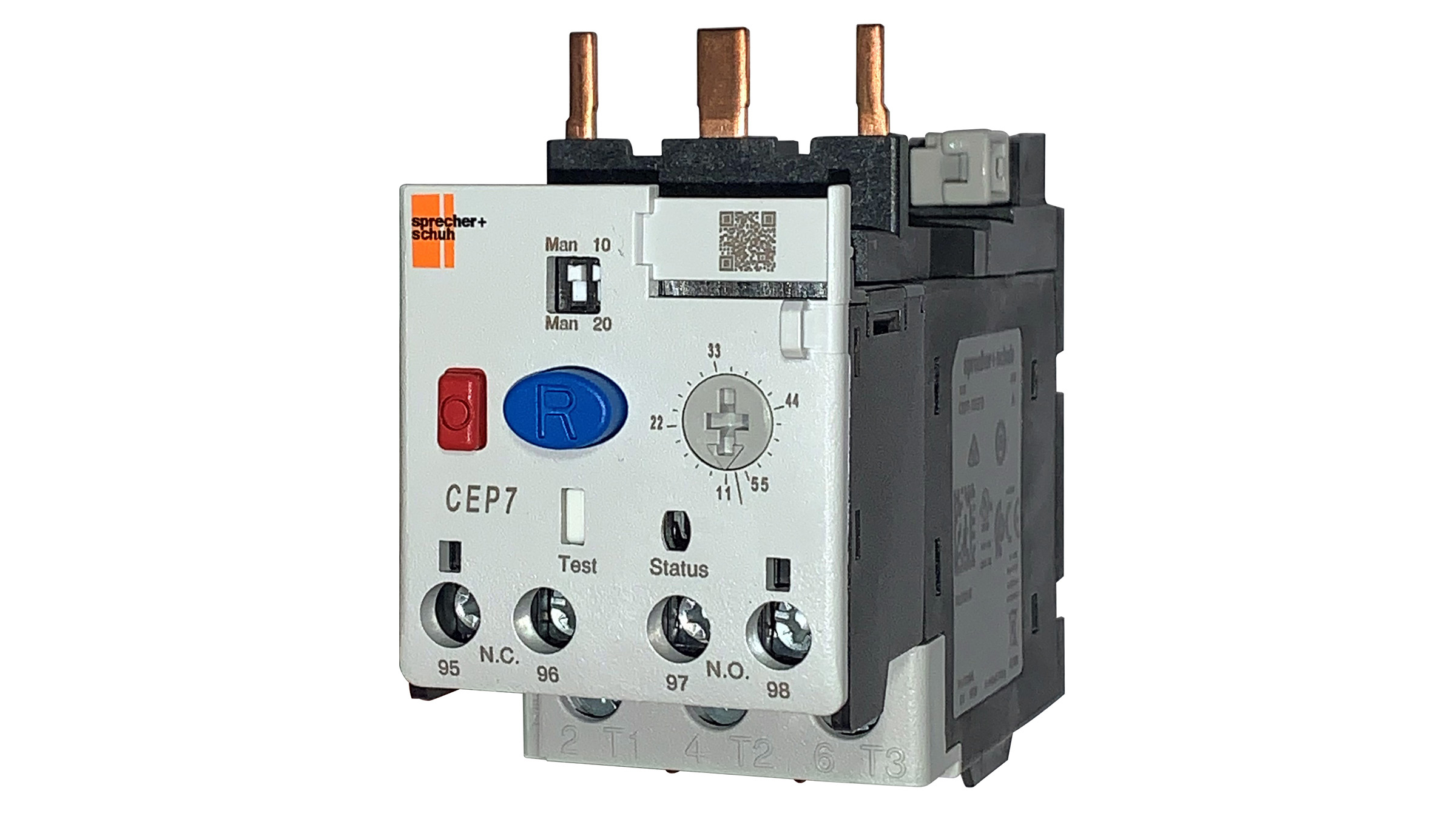

CEP7-1EE Basic

  • Manual reset mode
  • Trip class 10 and 20 (dip switches)

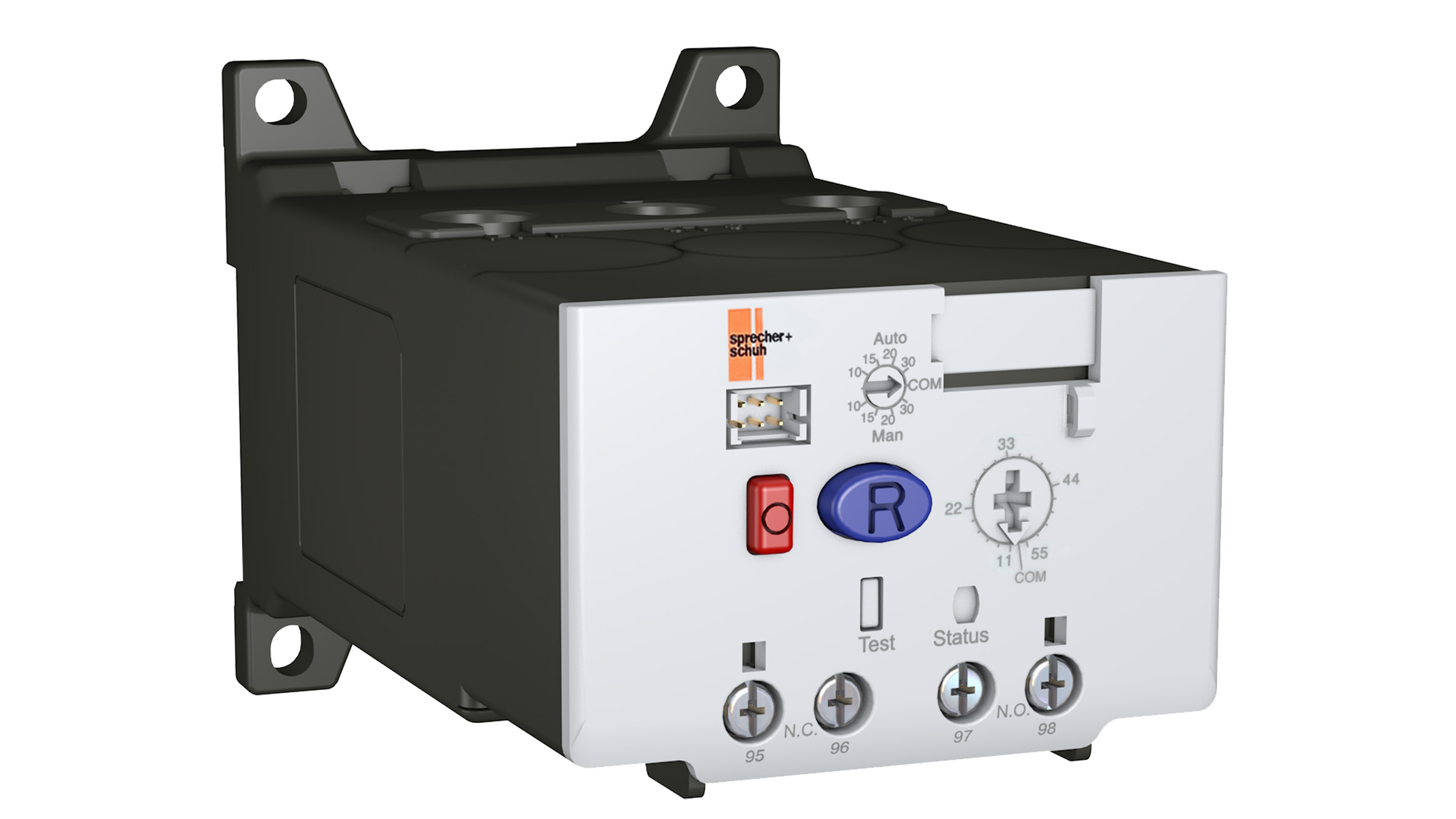

CEP7-1EF Advanced

  • Selectable manual or auto-manual reset modes
  • Trip class 10...30 (selectable dial)

Ideal for light to medium industry processes

  • Pump and Fan motors
  • Sawmills
  • Mixers
  • Conveyors

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
Choosing the Right Overload Relay Brochure F-MotorProtection
CEP7 3rd Generation Relays Flyer  F-CEP7-1OLR
Premium Efficiency Motor Protection White Paper TECH-High Efficiency Motors
