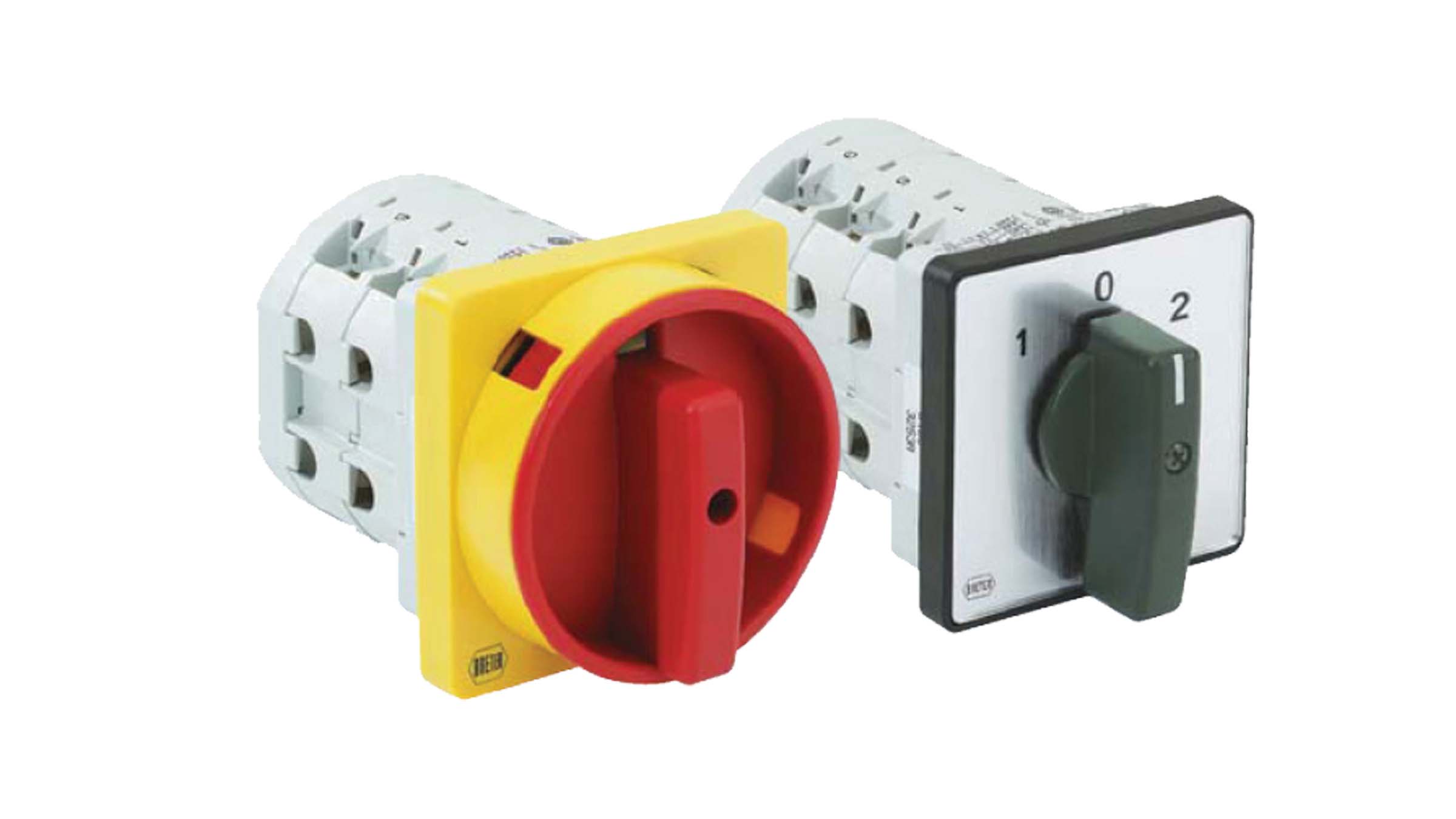

Series R-Line 40 Amp Switches

Rugged and dependable 40 amp switches for industrial applications

CONTACT A DISTRIBUTOR

FIND A SALES OFFICE

Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals

R40 Switches

Overview

Sprecher + Schuh's rugged R-Line rotary cam switches are available for most control and load applications up to 40 amps. As with our smaller L2 Series switches, a well-thought-out ordering system provides many standard and nonstandard configurations that are often available "off the shelf."

Rotary Cam Switches

Product Comparison

For many applications R-Line control and load switches comply with the most important international standards for use as:

Changeover Switches - for switching between alternate electrical supplies.
ON/OFF switches - to connect and disconnect any electrical supply.
Multi-position load switches – for the step control of loads such as heaters and furnaces.
Motor load disconnect switches – for safely isolating circuits during repair and maintenance.
Reversing switches - to change the direction or rotation of a motor.
Wye-Delta switches - To manually control reduced voltage starting of a motor.

Specifications

RE 40 Front Panel or RA 40 base mounted
1-, 2-, 3-, 4- or 6-pole switches
Modular switch and handle assemblies
ON-OFF, Changeover, Step, Reversing, Wye-Delta, and Single Winding (two Speed)
Standard, Pad lockable, and self-contained knobs
Type R, Types 12, IP66
CE, UL and CSA

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
