Series V7 Marking System

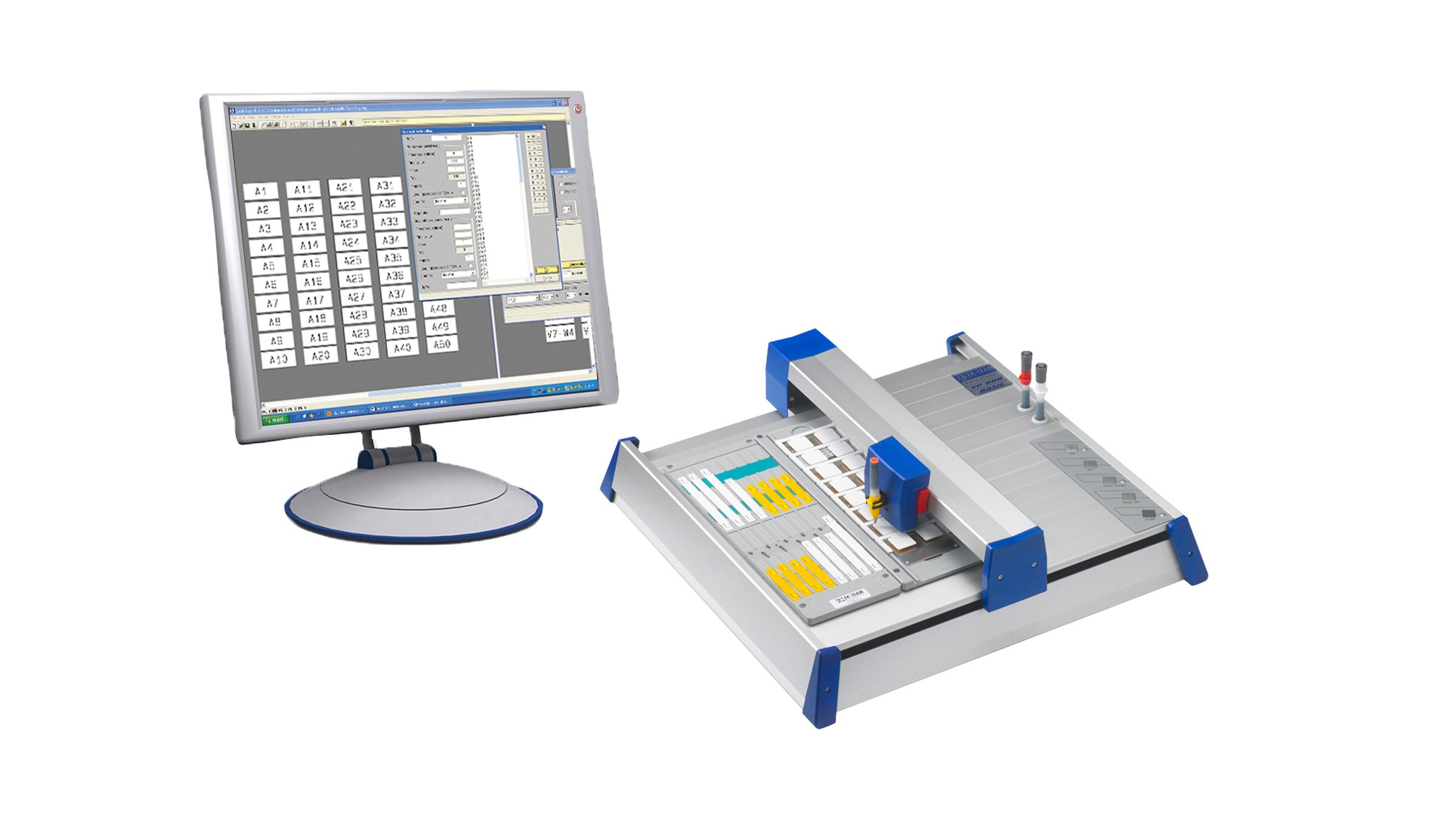

  • Labeling for V7 terminal assemblies, from standard preprinted marker cards to a custom marking  software and plotter system.
Labeling for V7 terminal assemblies, from standard preprinted marker cards to a custom marking  software and plotter system.

Labeling for V7 terminal assemblies, from standard preprinted marker cards to a custom marking software and plotter system.


CONTACT A DISTRIBUTOR
FIND A SALES OFFICE



Popular Resources / Quicklinks

E-Catalog Literature CAD Drawings Approvals
Series V7 Marking System
  • Overview
  • Product Comparison
  • Specifications
  • Documentation
  • Tips/FAQ

Overview

Whether you're marking individual terminals or terminal groups, Sprecher + Schuh's V7-W are accompanied by a wide array of marking solutions. From standard preprinted marker cards, to custom marking with our EK VarioSign Software and Plotter system, Sprecher + Schuh offers a tremendous array of options for labeling any terminal assembly.

Terminal Blocks

Series V7-W

Series V7 Marking System

Product Comparison

Blank Terminal Markers

For customers who prefer to write their own terminal markers, blank marking cards are available for all sizes of Sprecher + Schuh's V7 terminals.

Preprinted Terminal Markers

Selected V7-W terminals can be marked with single digit marking tabs. This convenient marking system is ideal for applications where professional marking is required, but time is critical. Single-digit, preprinted alphanumeric characters can be mixed and matched to provide exactly the right label for any terminal. Preprinted marking cards are available to fit virtually any Sprecher + Schuh V7-W terminal. Cards are marked with ten numbers in a series, printed either vertically or horizontally.

Custom Terminal Marking

All sizes of Sprecher + Schuh marking cards can be custom printed on our terminal plotter system. In addition to alphanumeric characters, 100 electrical symbols are also available.

Specifications

  • Preprinted or Custom Printed
  • 5 x 5 mm to 8 x 12 mm Marking Cards
  • 6mm & 5mm Marking Tabs
  • Alphanumeric or symbols
  • Horizontal or vertical text

Looking for more?

Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.

E-Catalog


Documentation


Resource Resource Type Publication Number
V7 Terminals & Marking System Overview Flyer F-V7TERMINALS
